Field Controls 3G-OTH-78217 — Spesifikasi Teknis

Name: Field Controls 3G-OTH-78217 Motorized Damper: For 8 in Dia, 8 1/8 in L, 12 7/8 in H, 12 7/8 in W, Crimped/Slip-Over, Single (MPN FCD-8). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: Mounting Packet Containing Sheet Metal Screws.
Brand: Field Controls

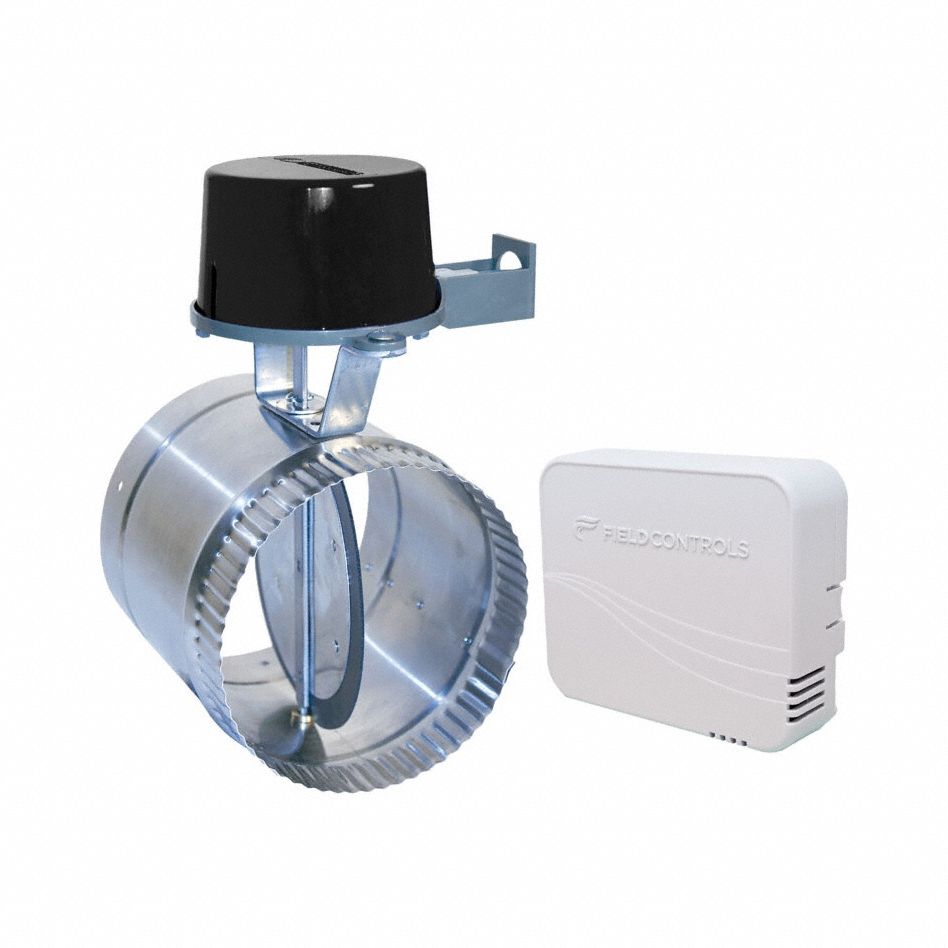

The FIELD CONTROLS FCD-8 is a motorized fresh air intake damper for 8-inch diameter ducts, featuring a flat blade with a rubber seal and a normally closed switch action. It operates on 24V AC nameplate voltage and supports a maximum air velocity of 1,000 fpm. The unit measures 8 1/8 inches in length, 12 7/8 inches in height, and 12 7/8 inches in width, with a crimped/slip-over connection, and includes a mounting packet with sheet metal screws.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
H	12 7/8 in
Type	8 1/8 in L, 12 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	Mounting Packet Containing Sheet Metal Screws
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FCD-8
