Field Controls 3G-OTH-78197 — Spesifikasi Teknis

Name: Field Controls 3G-OTH-78197 Motorized Damper: For 10 in Dia, 12 1/8 in L, 14 7/8 in H, 14 7/8 in W, Crimped/Slip-Over, Single (MPN FCD-10). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: Mounting Hole Template.
Brand: Field Controls

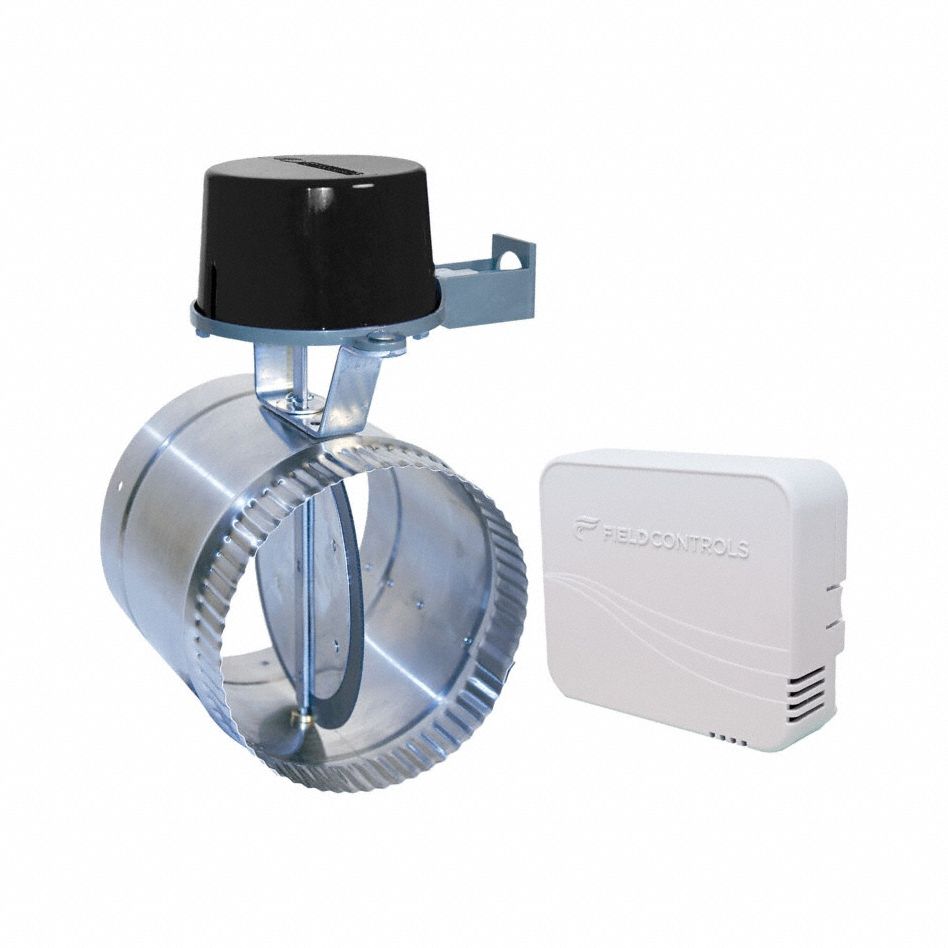

The FIELD CONTROLS FCD-10 is a motorized fresh air intake damper for 10-inch diameter ducts, featuring a flat blade with a rubber seal and a normally closed switch action. It operates on 24V AC nameplate voltage and supports a maximum air velocity of 1,000 fpm. The unit measures 12 1/8 inches in length, 14 7/8 inches in height and width, with a crimped/slip-over connection, and includes a mounting hole template.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
H	14 7/8 in
Type	12 1/8 in L, 14 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	Mounting Hole Template
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FCD-10
