Field Controls 3G-OTH-77868 — Spesifikasi Teknis

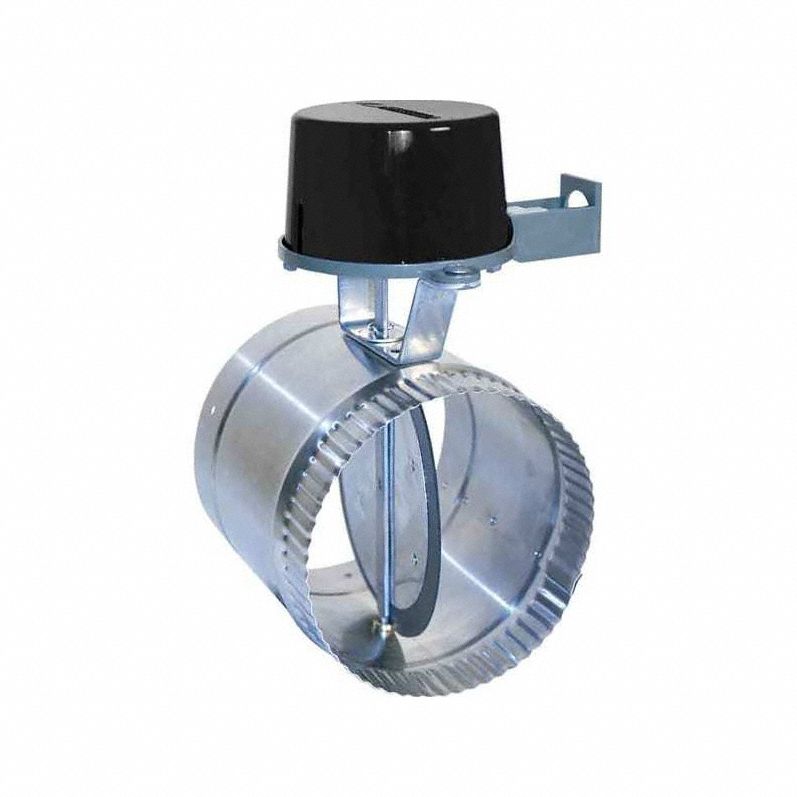

Name: Field Controls 3G-OTH-77868 Motorized Damper: For 5 in Dia, 6 1/8 in L, 9 7/8 in H, 9 7/8 in W, Crimped/Slip-Over, Single (MPN FAD-5). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: 3-Wire Harness with Modular Damper Connector.
Brand: Field Controls

The FIELD CONTROLS FAD-5 is a motorized fresh air intake damper for 5-inch diameter ducts, featuring a normally closed flat blade with a rubber seal. It operates on 24V AC and supports a maximum air velocity of 1,000 fpm. The unit includes a 3-wire harness with a modular damper connector and has a crimped/slip-over design with dimensions of 6 1/8 in L, 9 7/8 in H, and 9 7/8 in W.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
H	9 7/8 in
Type	6 1/8 in L, 9 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	3-Wire Harness with Modular Damper Connector
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FAD-5
