Field Controls 3G-OTH-78144 — Spesifikasi Teknis

Name: Field Controls 3G-OTH-78144 Motorized Damper: For 12 in Dia, 12 1/8 in L, 16 7/8 in H, 16 7/8 in W, Crimped/Slip-Over, Single (MPN FAD-12). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: 3-Wire Harness with Modular Damper Connector.
Brand: Field Controls

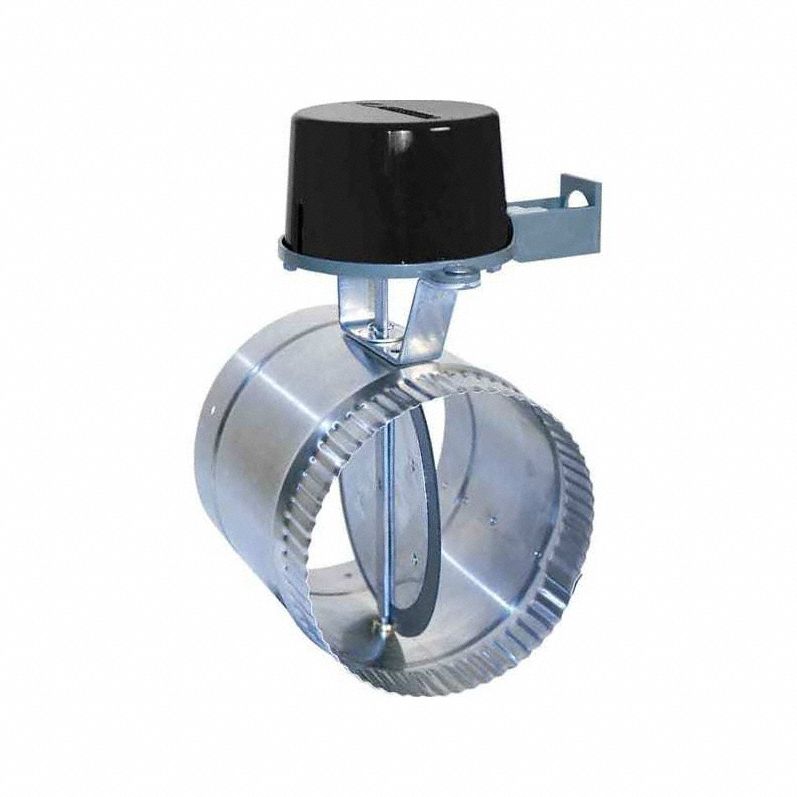

The FIELD CONTROLS FAD-12 is a 12-inch-diameter motorized fresh air intake damper with a flat blade and rubber blade seal. It operates on 24V AC with a normally closed switch action and includes a 3-wire harness with modular damper connector. The damper has a maximum air velocity of 1,000 fpm and measures 12 1/8 in L, 16 7/8 in H, and 16 7/8 in W with a crimped/slip-over design.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
H	16 7/8 in
Type	12 1/8 in L, 16 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	3-Wire Harness with Modular Damper Connector
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FAD-12
