Flowline 3G-OTH-90967 — Spesifikasi Teknis

Name: Flowline 3G-OTH-90967 FLOWLINE Noncontact Ultrasonic Level Sensor: 2 in NPT, 2 3/8 in Antenna Dia, 314.4 in Range, NPT (MPN XP88-00). Key specifications — Brand: FLOWLINE; Hazardous Location Specification: Class I, Div 1, Group A, B, C, D; Max. Voltage: 28V DC; Output Voltage Range: 4 to 20mA; Accuracy: +/-0.2% of Range; Display Type: LCD.
Brand: Flowline

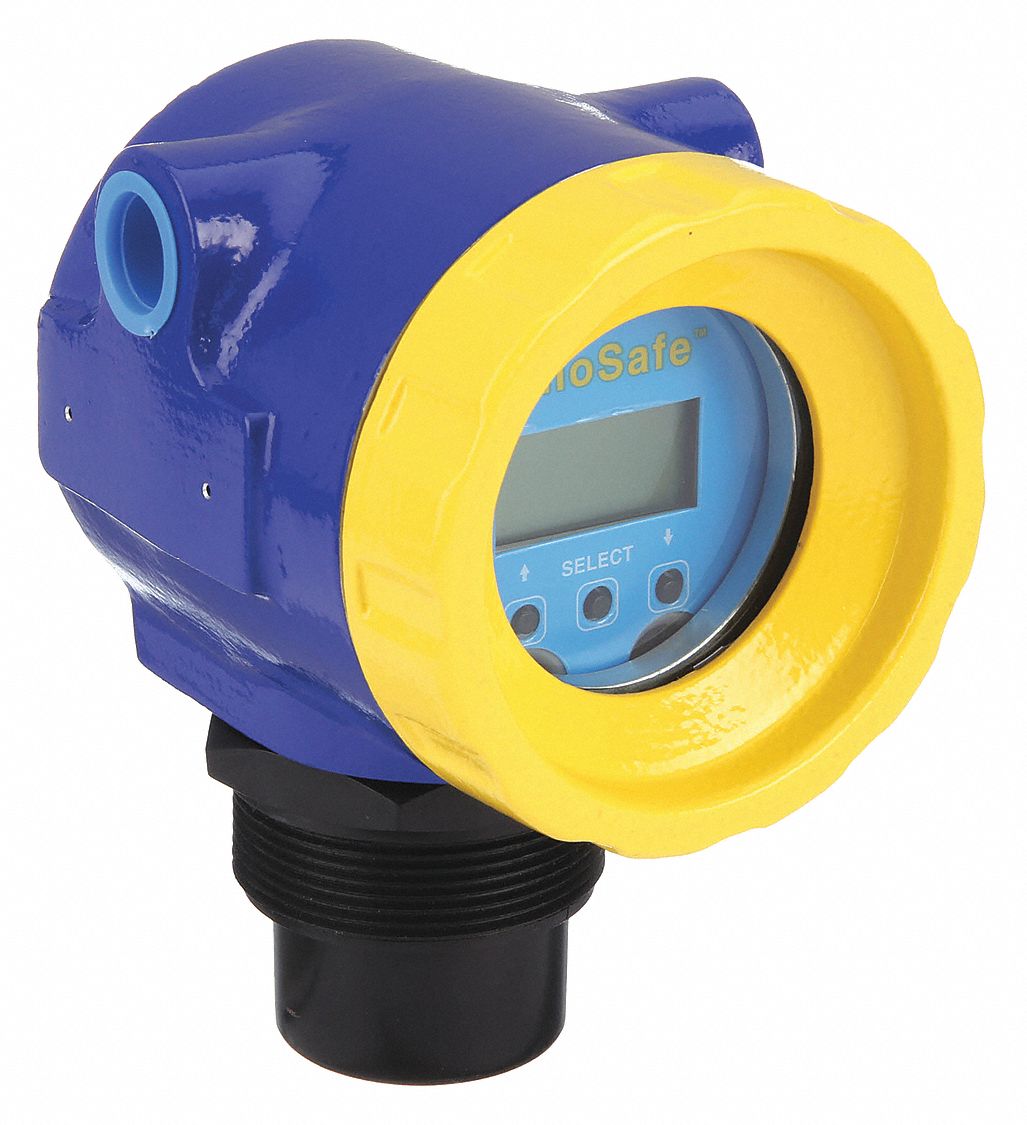

The FLOWLINE XP88-00 is a hazardous location ultrasonic liquid level sensor transmitter with a 2 in NPT connection, 2 3/8 in antenna diameter, and 314.4 in range. It features an LCD display, accuracy of +/-0.2% of Range, and a 4 to 20mA output voltage range with a max voltage of 28V DC. This Class I, Div 1, Group A, B, C, D rated sensor is designed for noncontact level measurement in hazardous environments.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	NPT
Brand	FLOWLINE
Range	314.4 in
Accuracy	+/-0.2% of Range
Antenna Dia	2 3/8 in
Display Type	LCD
Max. Voltage	28V DC
Output Voltage Range	4 to 20mA
Manufacturer Part Number	XP88-00
Hazardous Location Specification	Class I, Div 1, Group A, B, C, D
