Flowline 3G-OTH-90646 — Spesifikasi Teknis

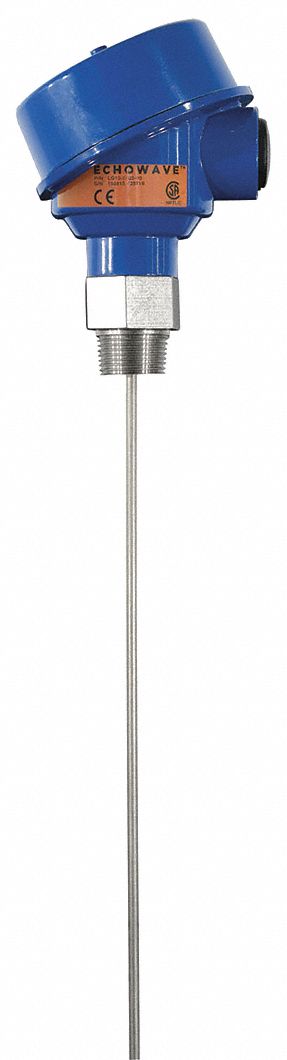

The FLOWLINE Rod Guided Wave Radar is a liquid level sensor transmitter with a rod probe, offering +/-3 mm accuracy. It features an aluminum body, 316 stainless steel stem and probe, and operates on 18/30V DC with a 4 to 20mA output in a 3-wire configuration. This vertical-mounting unit is designed for continuous level measurement in industrial applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPT | 3/4 in |
| Type | Vertical, NPT, +/-3 mm |
| Brand | FLOWLINE |
| Accuracy | +/-3 mm |
| Probe Type | Rod |
| Body Material | Aluminum |
| Stem Material | 316 Stainless Steel |
| Probe Material | 316 Stainless Steel |
| Nameplate Voltage | 18/30V DC |
| Mounting Orientation | Vertical |
| Output Voltage Range | 4 to 20mA |
| Manufacturer Part Number | LG10-0003-01 |
| Output Wire Configuration | 3-Wire |
