Flowserve 3G-OTH-95055 — Spesifikasi Teknis

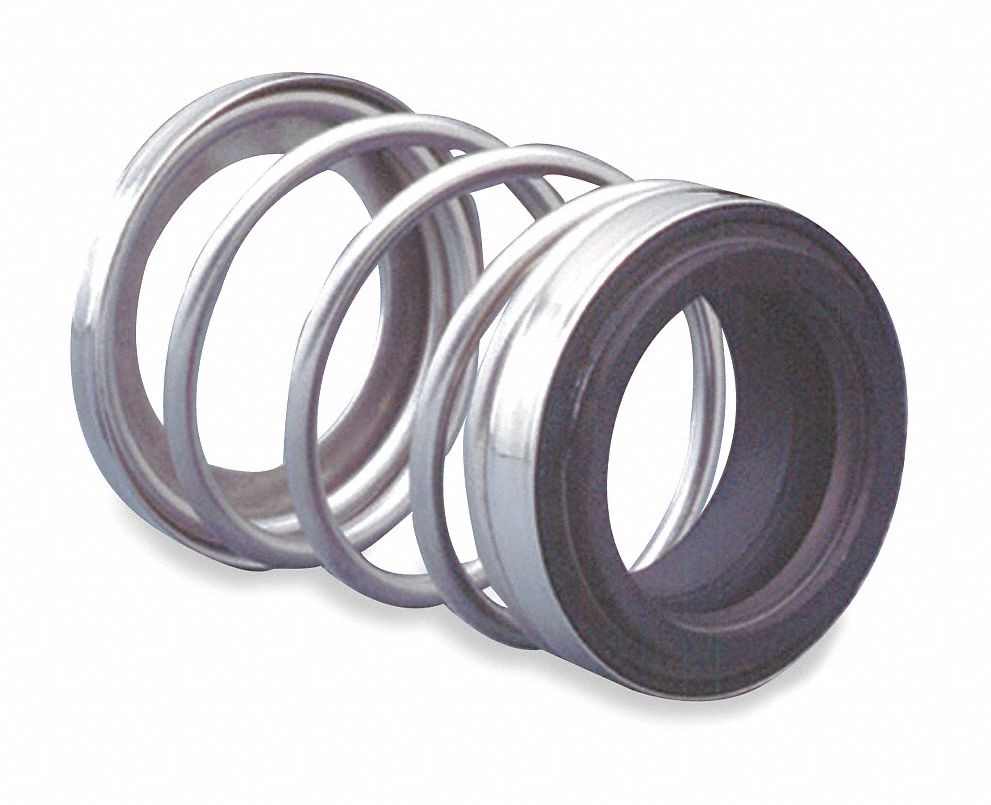

The FLOWSERVE Shaft Seal is a mechanical shaft seal designated as Type 21, featuring a carbon ring, a single 18-8 spring, and a Viton gasket. It is designed for a 5/8 in shaft diameter and supports a maximum shut-off pressure of 250 psi.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 21 |
| Brand | FLOWSERVE |
| Shaft Dia. | 5/8 in |
| Spring Type | Single Spring |
| Ring Material | Carbon |
| Gasket Material | Viton |
| Spring Material | 18-8 |
| Seal Type Designation | 21 |
| Shut Off Pressure (Max) | 250 psi |
| Manufacturer Part Number | 21-062-23 |
