Flowserve 3G-OTH-97143 — Spesifikasi Teknis

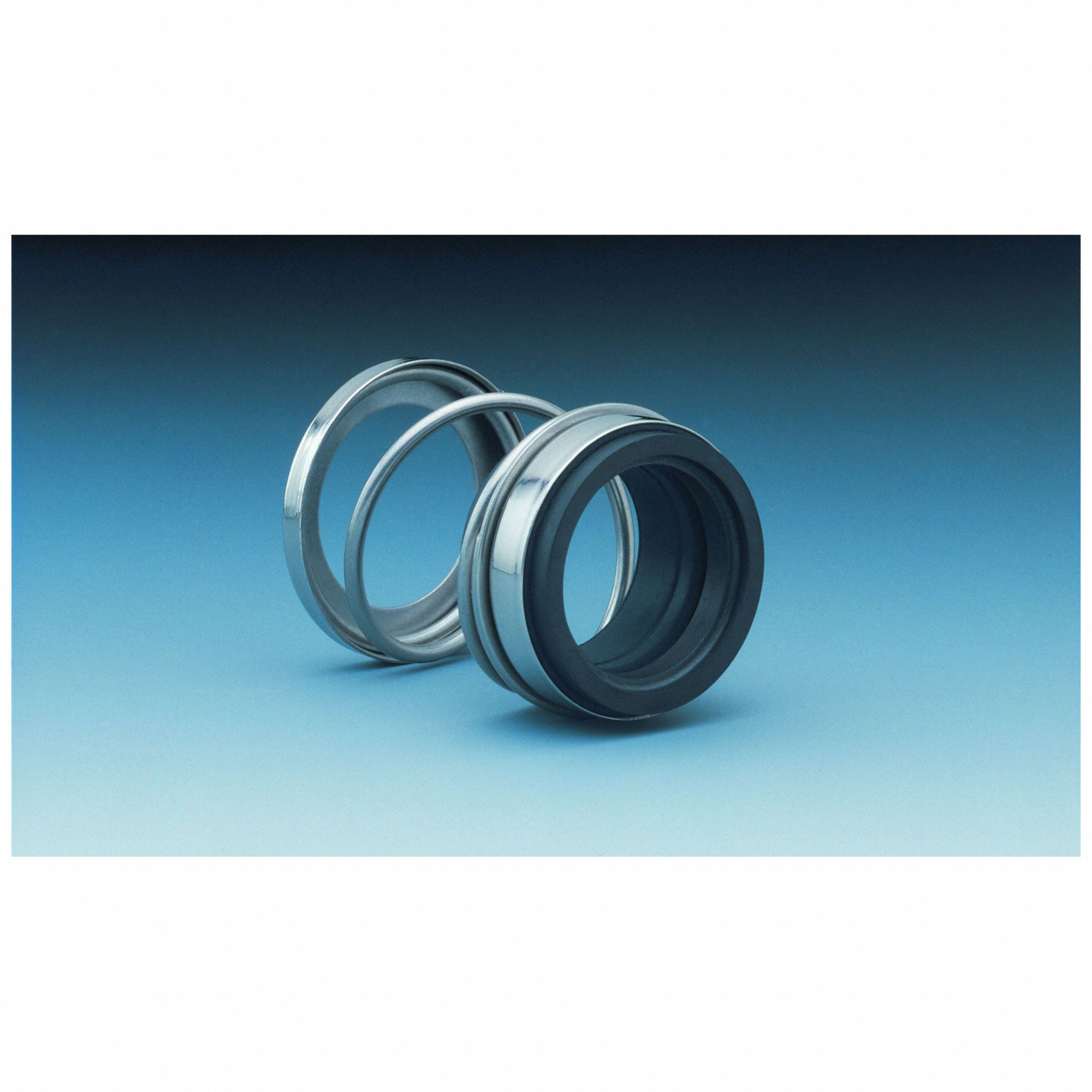

The FLOWSERVE Mechanical Shaft Seal, model 52-125-04, is a Type 52 mechanical shaft seal featuring a single spring design. It is constructed with a carbon ring, a Buna gasket, and 316 stainless steel spring material, and is designed for a 1 1/4 in shaft diameter with a 1.06 in working length.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 52, 316 |
| Brand | FLOWSERVE |
| Shaft Dia. | 1 1/4 in |
| Working Lg | 1.06 in |
| Spring Type | Single Spring |
| Ring Material | Carbon |
| Gasket Material | Buna |
| Spring Material | 316 |
| Seal Type Designation | 52 |
| Manufacturer Part Number | 52-125-04 |
