Flowserve 3G-OTH-97168 — Spesifikasi Teknis

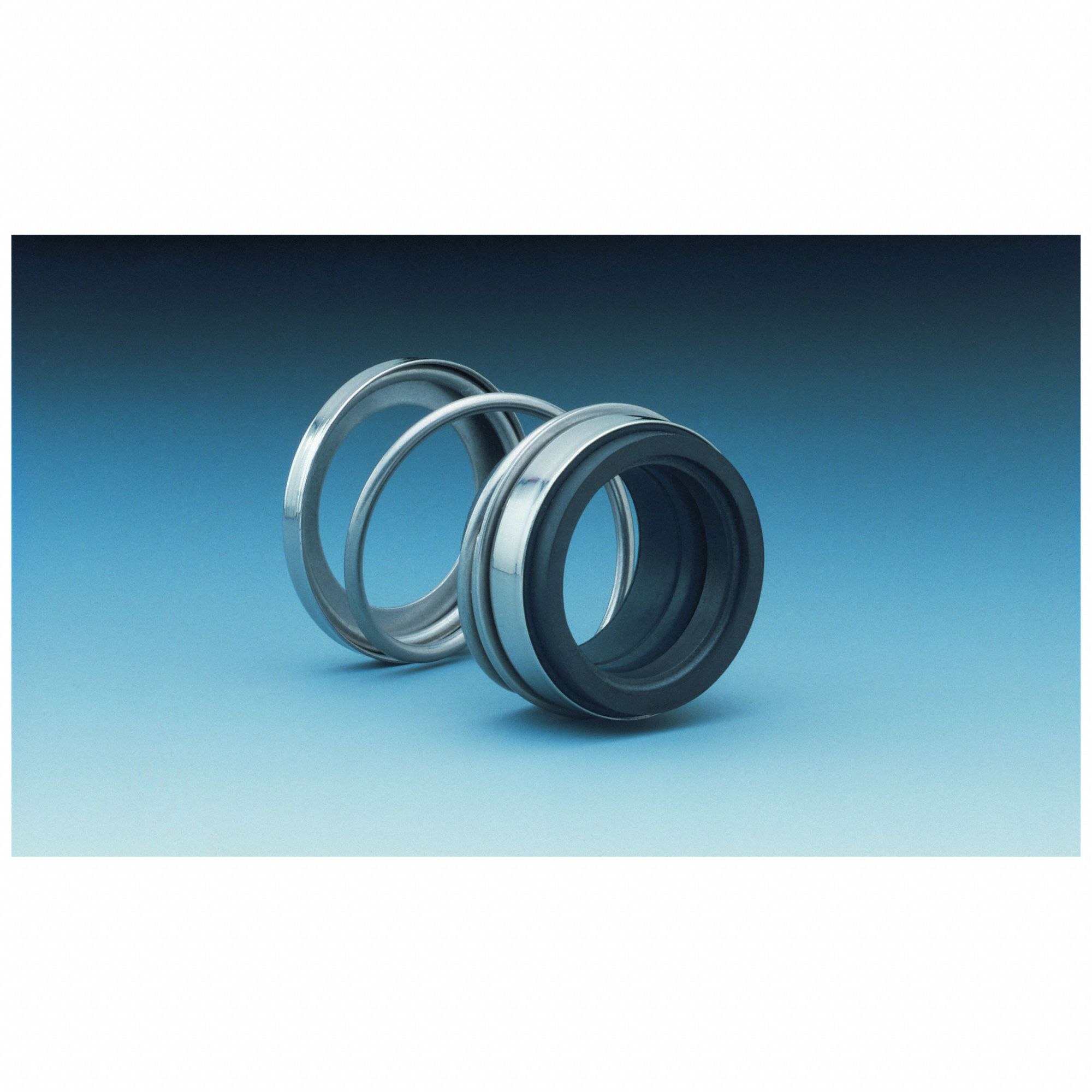

The FLOWSERVE Mechanical Shaft Seal, model 52-200-04, is a Type 52 mechanical shaft seal featuring a single spring design. It is constructed with a carbon ring, Buna gasket, and 316 stainless steel spring material. This seal has a 2-inch shaft diameter and a 1.5-inch working length.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 52, 316, Buna |
| Brand | FLOWSERVE |
| Shaft Dia. | 2 in |
| Working Lg | 1.5 in |
| Spring Type | Single Spring |
| Ring Material | Carbon |
| Gasket Material | Buna |
| Spring Material | 316 |
| Seal Type Designation | 52 |
| Manufacturer Part Number | 52-200-04 |
