Flowserve 3G-OTH-95930 — Spesifikasi Teknis

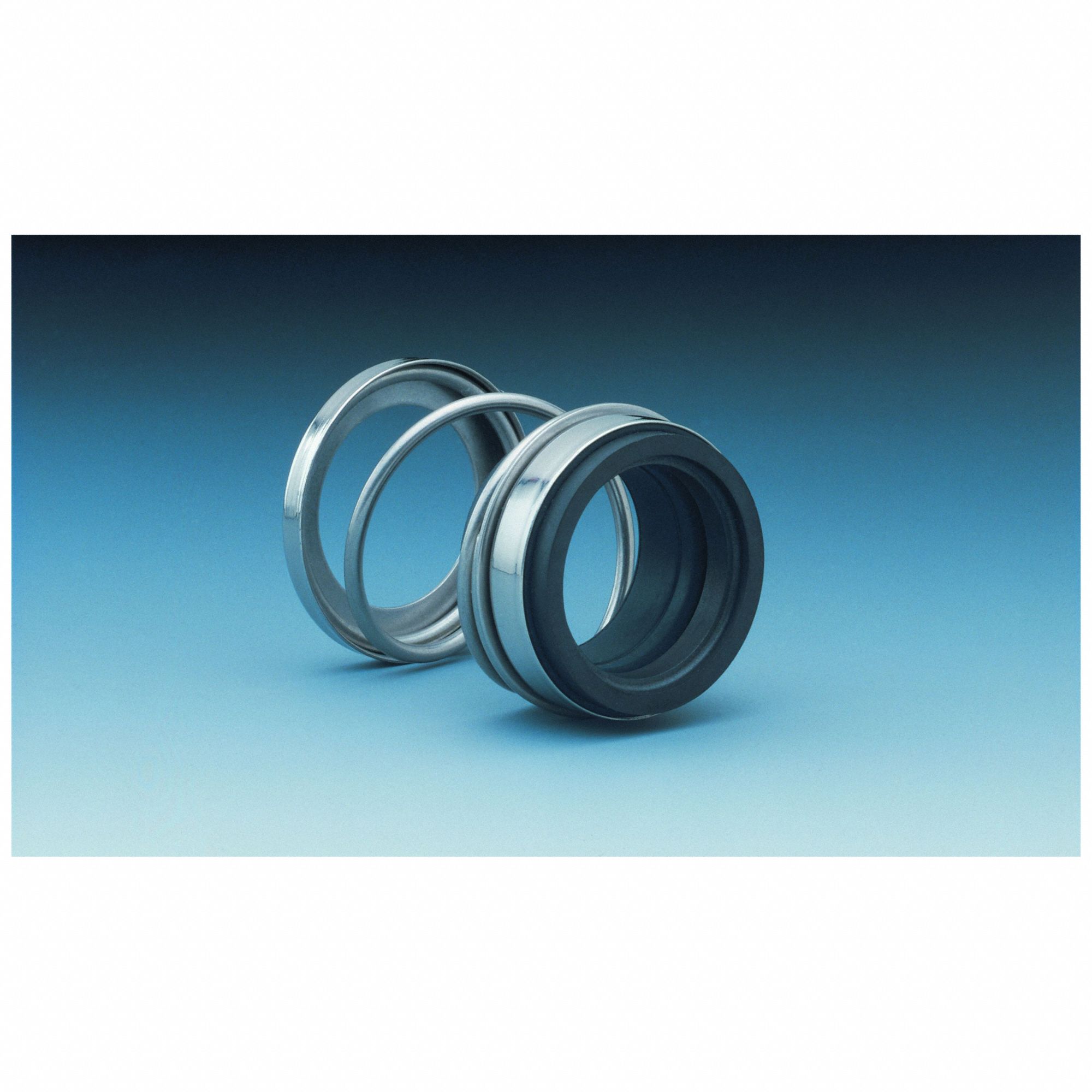

The FLOWSERVE Mechanical Shaft Seal, model 52-175-05, is a Type 52 mechanical shaft seal featuring a single spring design. It is constructed with a carbon ring, a Viton gasket, and 316 stainless steel spring material, with a shaft diameter of 1 3/4 in and a working length of 1.38 in.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 52, 316 |
| Brand | FLOWSERVE |
| Shaft Dia. | 1 3/4 in |
| Working Lg | 1.38 in |
| Spring Type | Single Spring |
| Ring Material | Carbon |
| Gasket Material | Viton |
| Spring Material | 316 |
| Seal Type Designation | 52 |
| Manufacturer Part Number | 52-175-05 |
