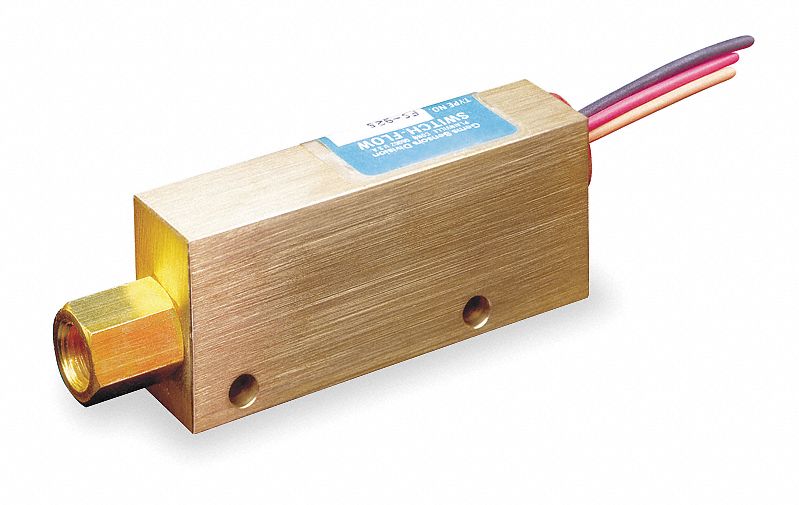

Gems Sensors 3G-OTH-90347 — Spesifikasi Teknis
The GEMS SENSORS Liquid Flow Switch: Piston is a low-flow piston flow switch with a fixed set point and normally open switch position. It features a 20 V DC contact rating and is rated for hazardous locations Class I, Div 2, Groups A, B, C, D. The switch has a 1/4 in FNPT connection and is constructed with a brass body.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1/4 in |
| Type | Brass, FNPT, SPDT |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 1/4 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-926, 26939 |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
