Gems Sensors 3G-OTH-90172 — Spesifikasi Teknis

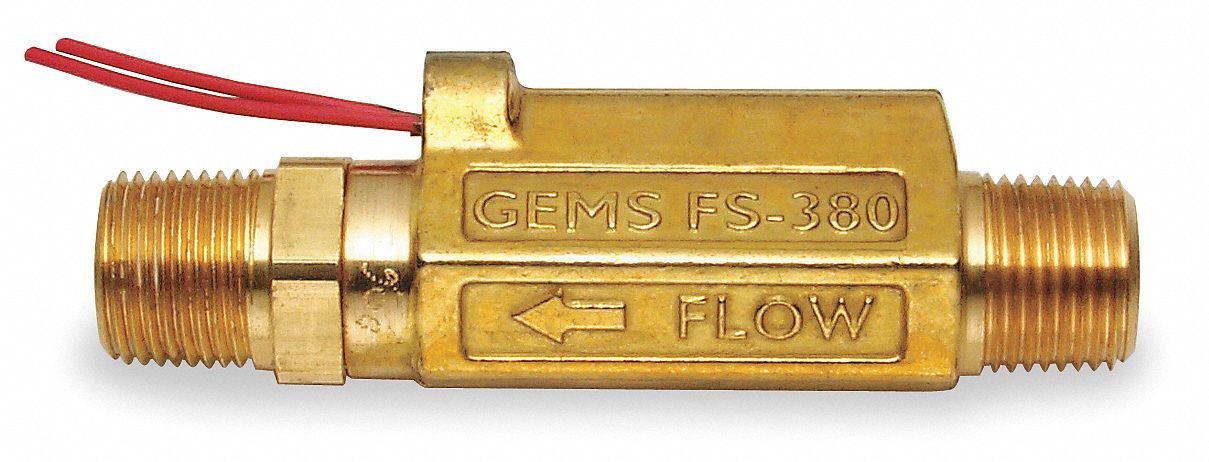

The GEMS SENSORS Liquid Flow Switch is a high-pressure-rated compact piston-type flow switch with a fixed set point and normally open SPST switch position. It features a brass body with 3/8 in NPT connections and a 20 V DC contact rating. This model is identified by manufacturer part numbers FS-380 and 168435.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPT | 3/8 in |
| Type | Brass, NPT, SPST, Fixed |
| Brand | GEMS SENSORS |
| Set Point Type | Fixed |
| Connection Size | 3/8 in |
| Switch Position | Normally Open |
| Contact Rating (DC) | 20 V |
| Manufacturer Part Number | FS-380, 168435 |
