Genteq 3G-OTH-54406 — Spesifikasi Teknis

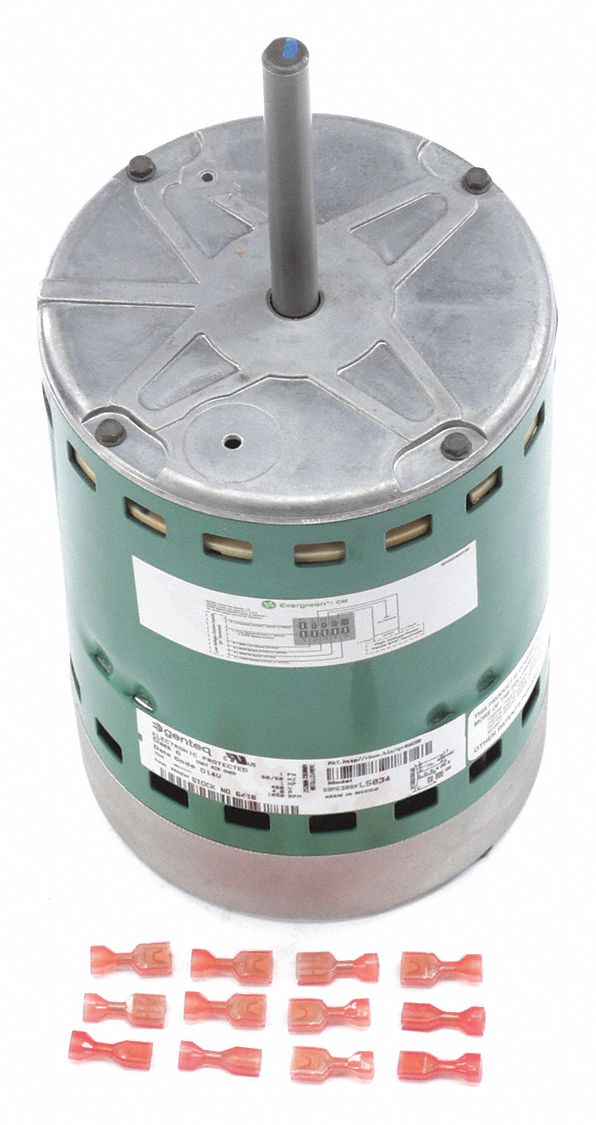

The GENTEQ Evergreen® CM is a 48-frame, 1 hp (750 W) constant-torque ECM direct-drive blower motor (MPN 6410) with an open-air-over (OAO) enclosure. It operates at 1,075 RPM and 4.0 A full-load amps at 60 Hz on 460V AC, and offers multi-speed control via five 24 VAC taps. This motor is compatible with a building management system low-voltage controller and includes voltage plugs.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Belly Band, ECM, Open Air Over, 1 hp |
| Brand | GENTEQ |
| Features | Multi-Speed (5 Taps @ 24vac) |
| Includes | Voltage Plugs |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1 hp |
| Horsepower/Wattage | 1 hp750 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 4.0 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6410 |
| Nameplate Voltage @ 60 Hz | 460V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
