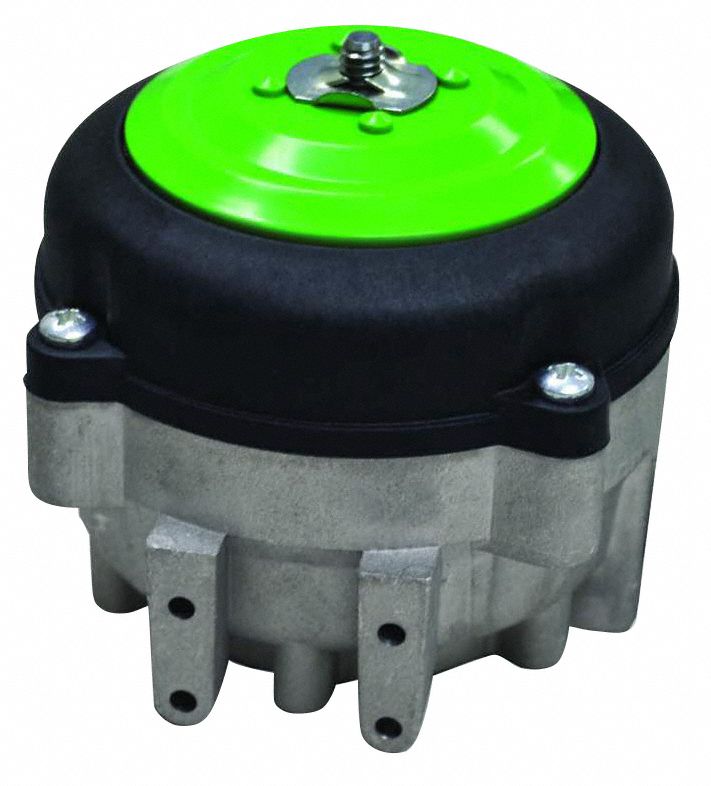

Genteq 3G-OTH-54395 — Spesifikasi Teknis
The GENTEQ Kryo™ Fortress is a Non-Standard frame size EC motor (Constant RPM type) designed as a replacement for PSC Direct-Drive Induction Motors. It operates at 1,550 RPM @ 60 Hz with a Full Load Amps range of 0.55-0.3 A @ 60 Hz, powered by 90/240V AC and rated at 20 W. The motor features a TEAO enclosure and is not compatible with external controllers.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Non-Std Frame Size, Double Foot/Rear, ECM |
| Brand | GENTEQ |
| Frame Size | Non-Standard |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Horsepower/Wattage | 20 W |
| For Motor Replacement | PSC Direct-Drive Induction Motor |
| Nameplate RPM @ 60 Hz | 1,550 RPM |
| Full Load Amps @ 60 Hz | 0.55-0.3 A |
| Includes User Interface | No |
| Manufacturer Part Number | MD5411S |
| Nameplate Voltage @ 60 Hz | 90/240V AC |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
