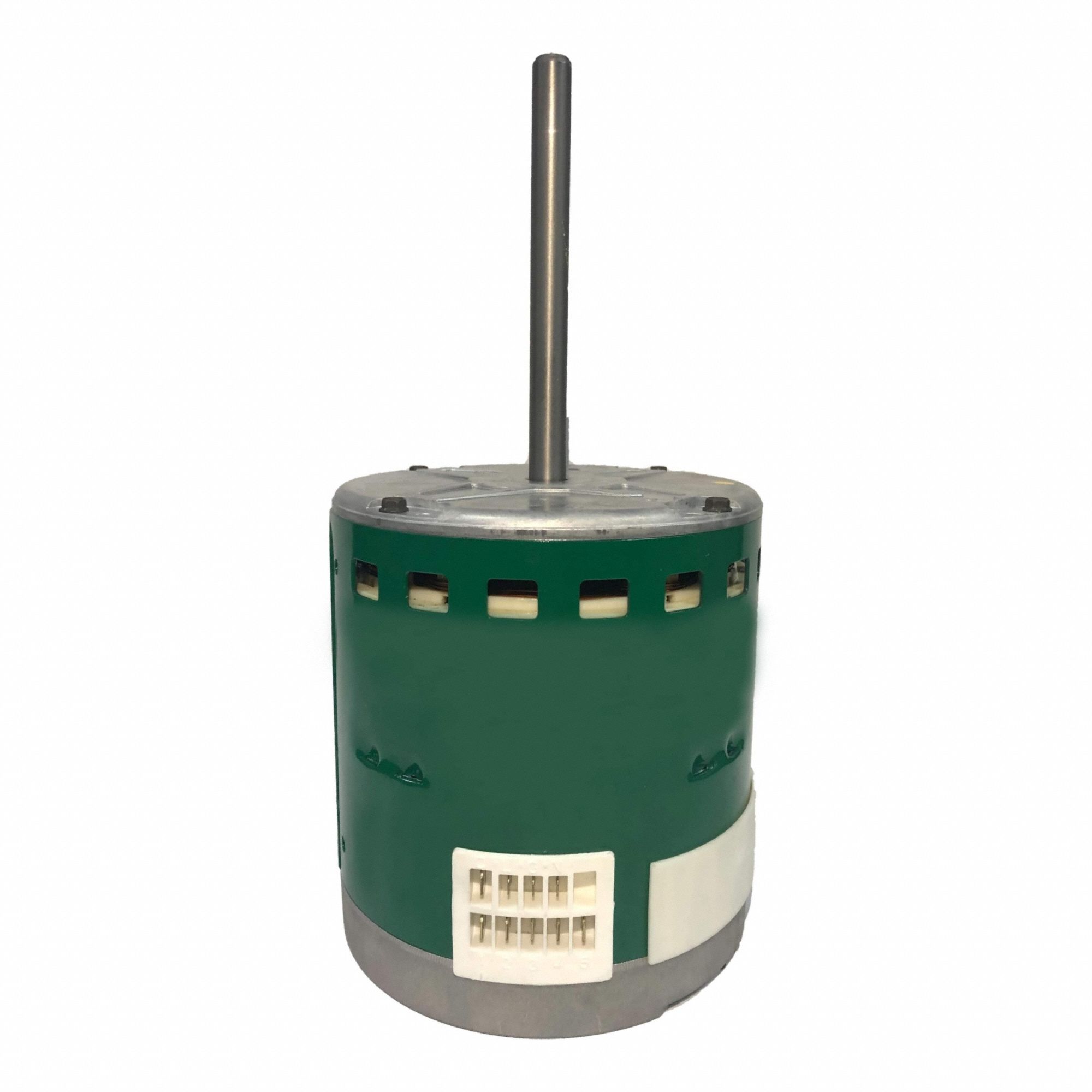

Genteq 3G-OTH-54316 — Spesifikasi Teknis
The GENTEQ Evergreen® EM is an Evergreen® Series EC motor in a 48 frame size, rated at 1/2 hp and 37 W with a nameplate RPM of 1,050 at 60 Hz. It operates as a constant torque ECM motor with an Open Air Over (OAO) enclosure, drawing 6.4/4.1 A full load amps at 115/208-230V AC. This motor features auto rotation and is compatible with a Building Management System Low Voltage Controller via an optional low voltage wiring harness.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Belly Band, ECM, Open Air Over, 1/2 hp, 6.4/4.1 A |
| Brand | GENTEQ |
| Features | Auto Rotation |
| Includes | Optional Low Voltage Wiring Harness |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 1/2 hp |
| Horsepower/Wattage | 1/2 hp37 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,050 RPM |
| Full Load Amps @ 60 Hz | 6.4/4.1 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6205X |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
