Genteq 3G-OTH-54335 — Spesifikasi Teknis

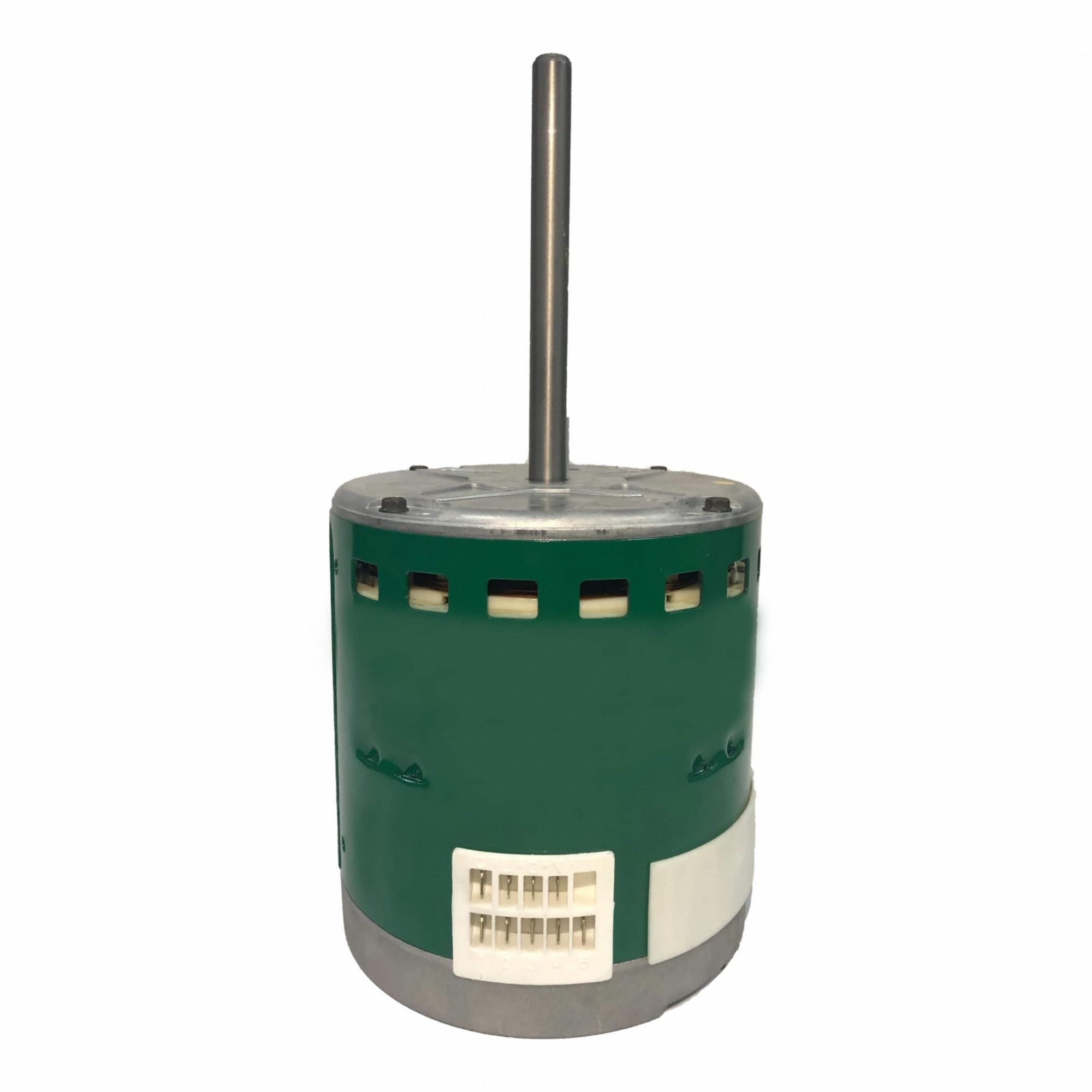

The GENTEQ Evergreen® EM is an Evergreen® Series EC motor in a 48 frame size, rated at 3/4 hp (560 W) with a nameplate RPM of 1,050 at 60 Hz and full load amps of 8.4/6.0 A at 115/208-230V AC. This constant-torque ECM motor features PWM auto recognition, includes voltage plugs, and is compatible with a Building Management System low voltage controller for external control.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Belly Band, ECM, Open Air Over, 3/4 hp, 8.4/6.0 A |
| Brand | GENTEQ |
| Features | PWM Auto Recognized |
| Includes | Voltage Plugs |
| Frame Size | 48 |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 3/4 hp |
| Horsepower/Wattage | 3/4 hp560 W |
| External Control Type | Building Management System Low Voltage Controller |
| Nameplate RPM @ 60 Hz | 1,050 RPM |
| Full Load Amps @ 60 Hz | 8.4/6.0 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6207X |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | Yes |
| Compatible With External Controller | External Control Compatible |
