Harris 3G-OTH-358157 — Spesifikasi Teknis

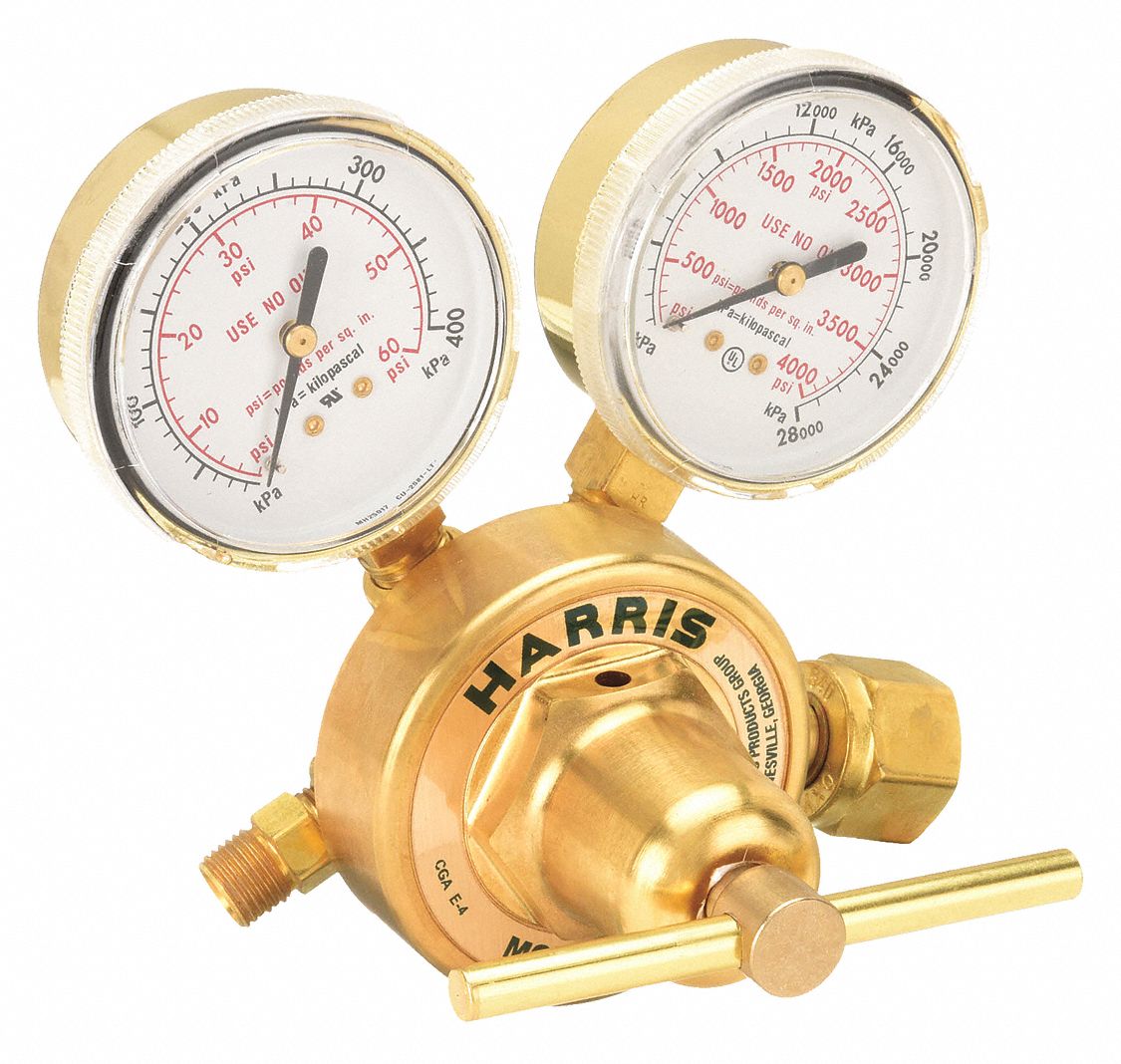

The HARRIS Gas Regulator: Single Stage is an air and inert gas regulator with a CGA 540 inlet and a 9/16"-18 M RH outlet. It features a Neoprene diaphragm and is rated for 50 psig outlet pressure (MPN 25GX-50-540).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | CGA 540 Inlet, 50 psig, Neoprene Diaphragm |
| Brand | HARRIS |
| RH Outlet | 9/16"-18 M |
| Inlet Connection | CGA 540 |
| Outlet Connection | 9/16"-18 M RH |
| Diaphragm Material | Neoprene |
| Manufacturer Part Number | 25GX-50-540 |
