Harting 3G-OTH-17022 — Spesifikasi Teknis

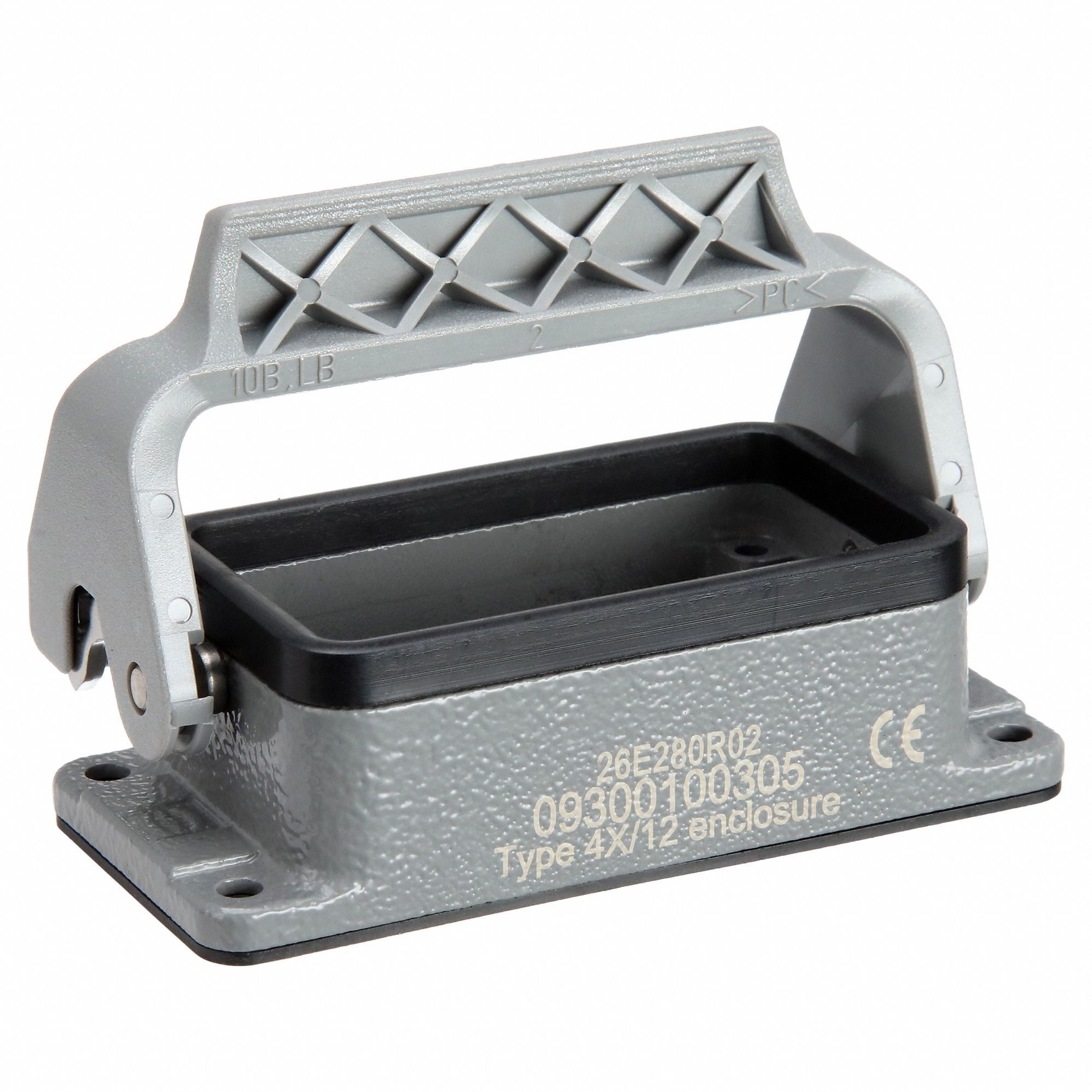

The HARTING Rectangular Connector Housing, Size 10 B, is a bulkhead-mount rectangular connector housing made of aluminum die-cast with an IP65 rating. It features a single-lever locking type, NBR seal material, and an operating temperature range of -40 to 125 Degrees C.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Bulkhead Mount, Gray, Aluminum Die-Cast, IP65 |
| Brand | HARTING |
| IP Rating | IP65 |
| Locking Type | Single Lever |
| Seal Material | NBR |
| Primary Material | Aluminum |
| Size Designation | 10 B |
| Manufacturer Part Number | 09300100305 |
| Operating Temperature Range | -40 to 125 Degrees C |
