Hayward Flow Control 3G-OTH-442640 — Spesifikasi Teknis

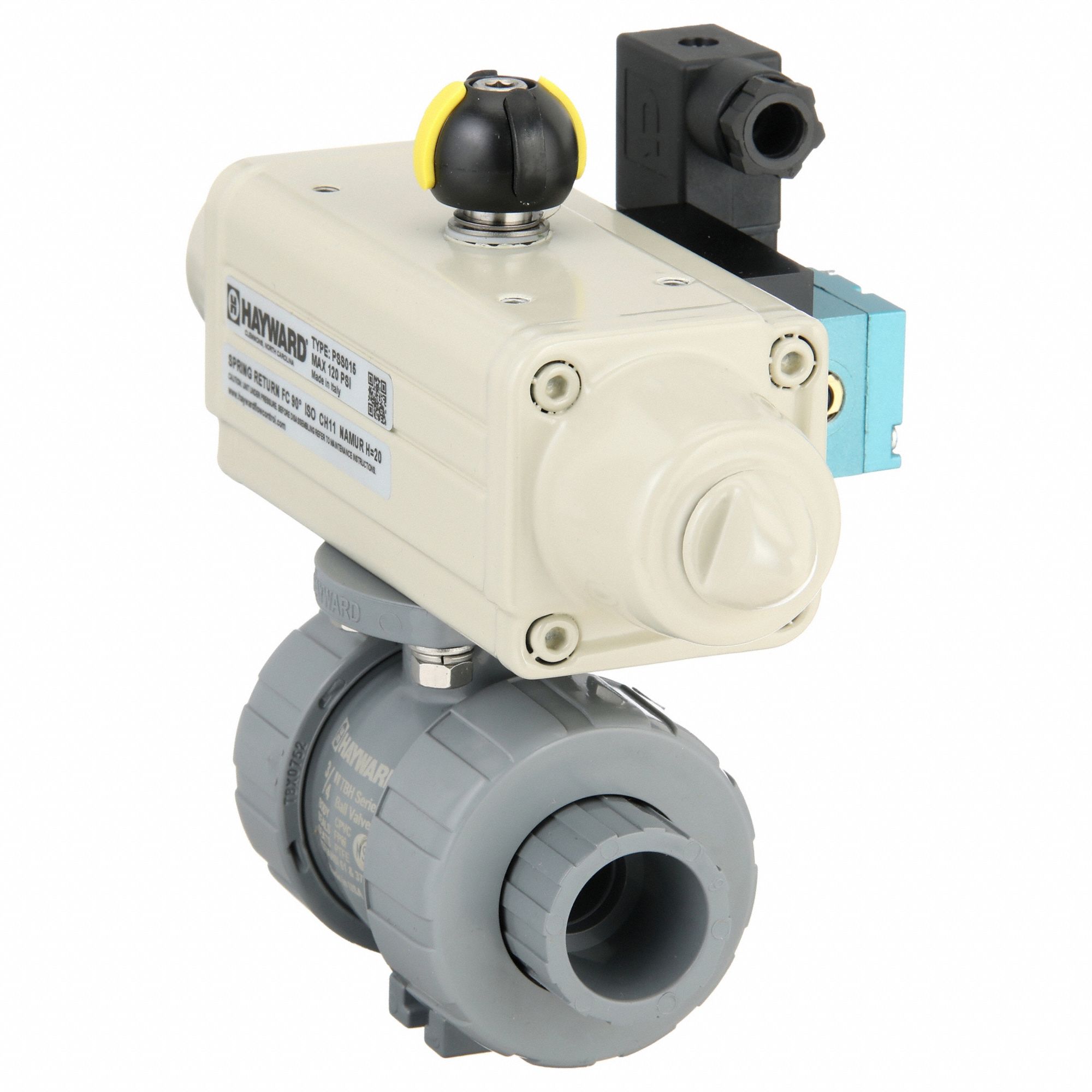

The HAYWARD FLOW CONTROL Pneumatically Actuated Two-Way Ball Valve (3/4 in, CPVC) is a pneumatically-actuated ball valve from the PSS actuator series. It features Air to Spring actuator operation, a Position Indicator, and an ISO 5211 actuator mounting pad. The valve has True-Union Socket/True-Union NPT female connections on both sides, is designed for water media, and complies with NSF/ANSI 372.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | CPVC, Air to Spring |
| Brand | HAYWARD FLOW CONTROL |
| For Media | Water |
| IP Rating | Not Rated |
| Standards | NSF/ANSI 372 |
| Actuator Series | PSS |
| Connection Type | True-Union Socket/True-Union NPT |
| Actuator Features | Position Indicator |
| Included Mounting | ISO 5211 Actuator Mounting Pad |
| Vented Ball Valve | Non-Vented |
| Actuator Operation | Air to Spring |
| Pilot Solenoid Voltage | Not Included |
| Connection Type - Side 1 | True-Union Socket/True-Union NPT |
| Connection Type - Side 2 | True-Union Socket/True-Union NPT |
| Manufacturer Part Number | PSSTBH207STVA9 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
