Hayward Flow Control 3G-OTH-442626 — Spesifikasi Teknis

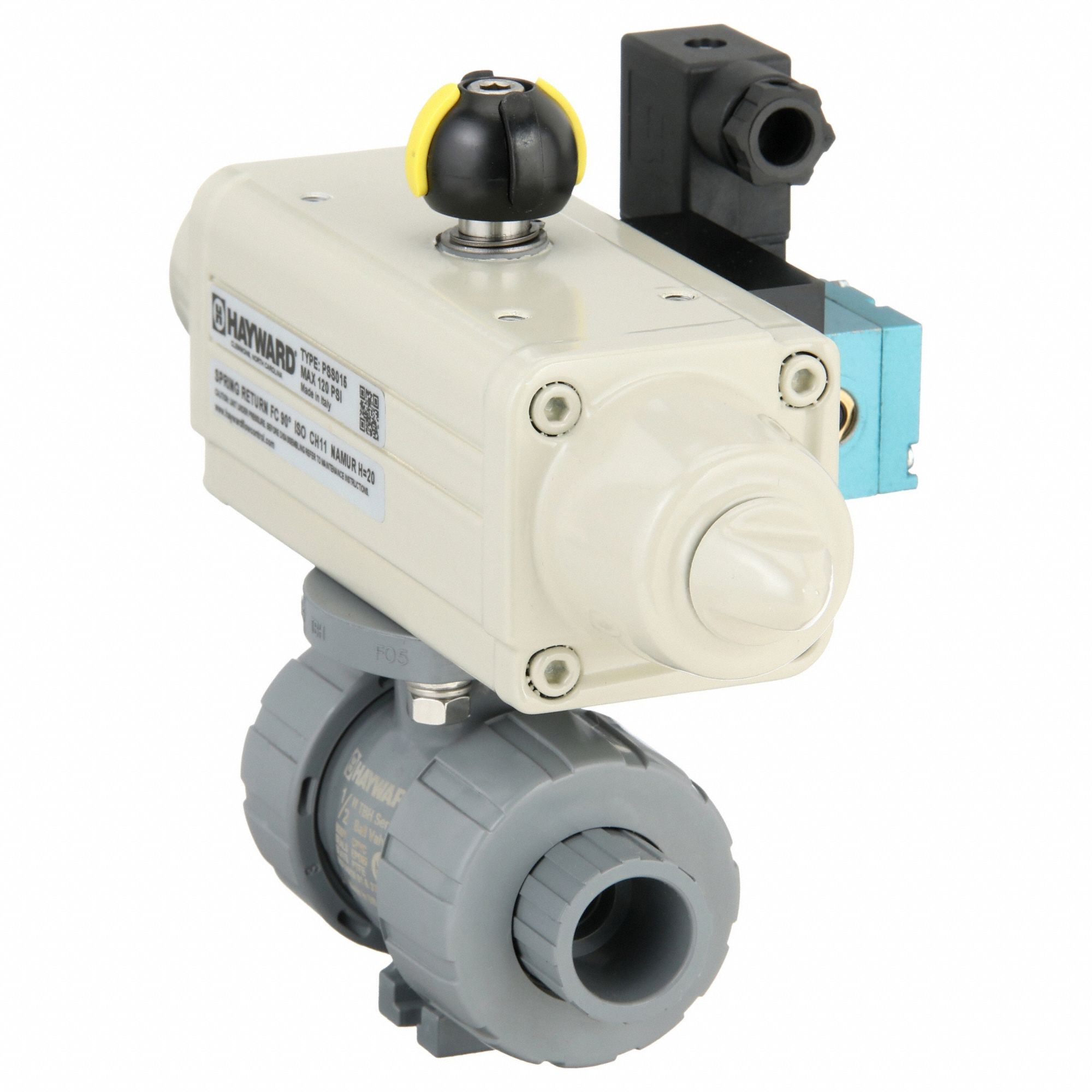

The HAYWARD FLOW CONTROL Pneumatically Actuated Two-Way Ball Valve is a 1/2 in CPVC pneumatically-actuated ball valve with an Air to Spring actuator operation. It features a Position Indicator, an ISO 5211 Actuator Mounting Pad, and True-Union Socket/True-Union NPT female connections on both sides. Designed for water media, it complies with NSF/ANSI 372 standards and is part of the PSS Actuator Series.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | CPVC, Air to Spring |
| Brand | HAYWARD FLOW CONTROL |
| For Media | Water |
| IP Rating | Not Rated |
| Standards | NSF/ANSI 372 |
| Actuator Series | PSS |
| Connection Type | True-Union Socket/True-Union NPT |
| Actuator Features | Position Indicator |
| Included Mounting | ISO 5211 Actuator Mounting Pad |
| Vented Ball Valve | Non-Vented |
| Actuator Operation | Air to Spring |
| Pilot Solenoid Voltage | Not Included |
| Connection Type - Side 1 | True-Union Socket/True-Union NPT |
| Connection Type - Side 2 | True-Union Socket/True-Union NPT |
| Manufacturer Part Number | PSSTBH205STEA9 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
