Honeywell 3G-OTH-67073 — Spesifikasi Teknis

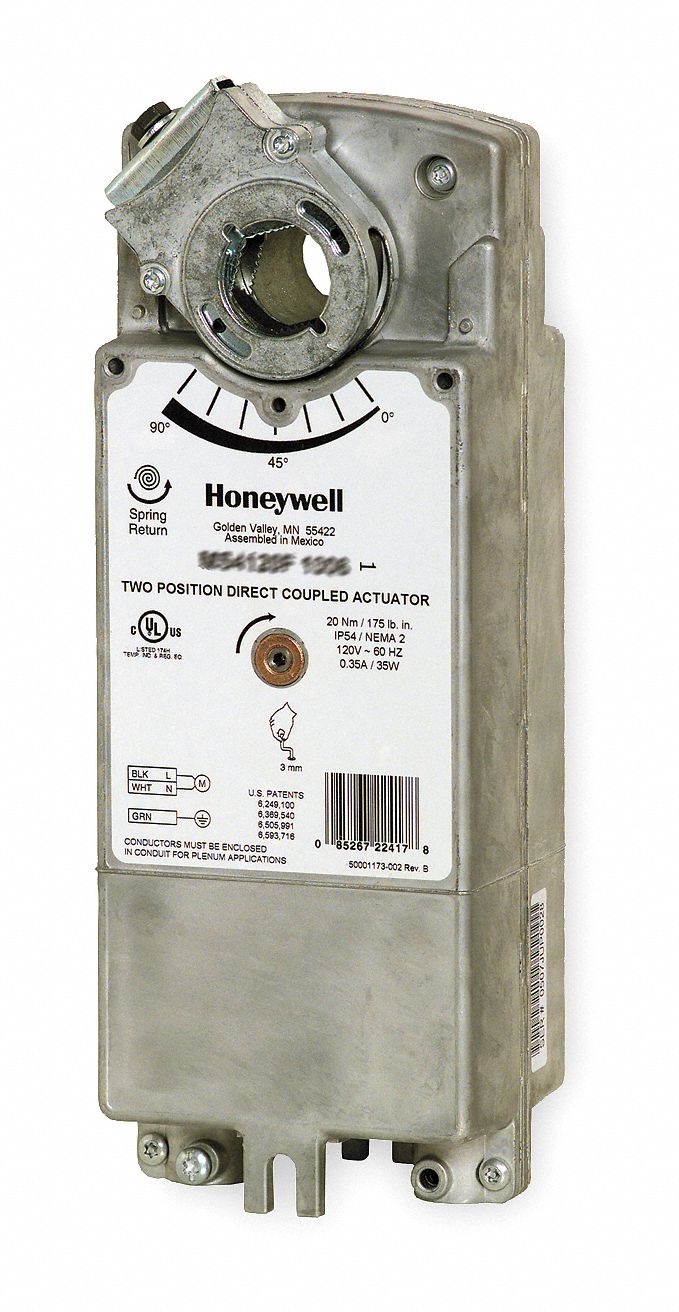

The Honeywell MS8120F1002/U is a fire and smoke rated damper actuator with on/off, spring return operation. It delivers 175 in-lb torque, features a 95° stroke with CW/CCW shaft rotation, and operates on 24V AC input. This hardwired actuator is NEMA 2 / IP54 rated and compatible with building automation systems.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 24V |
| Type | On/Off, Spring Return, 175 in-lb, Hardwired, NEMA 2 / IP54 |
| Brand | HONEYWELL |
| Input Voltage | 24V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MS8120F1002/U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
