Honeywell 3G-OTH-67664 — Spesifikasi Teknis

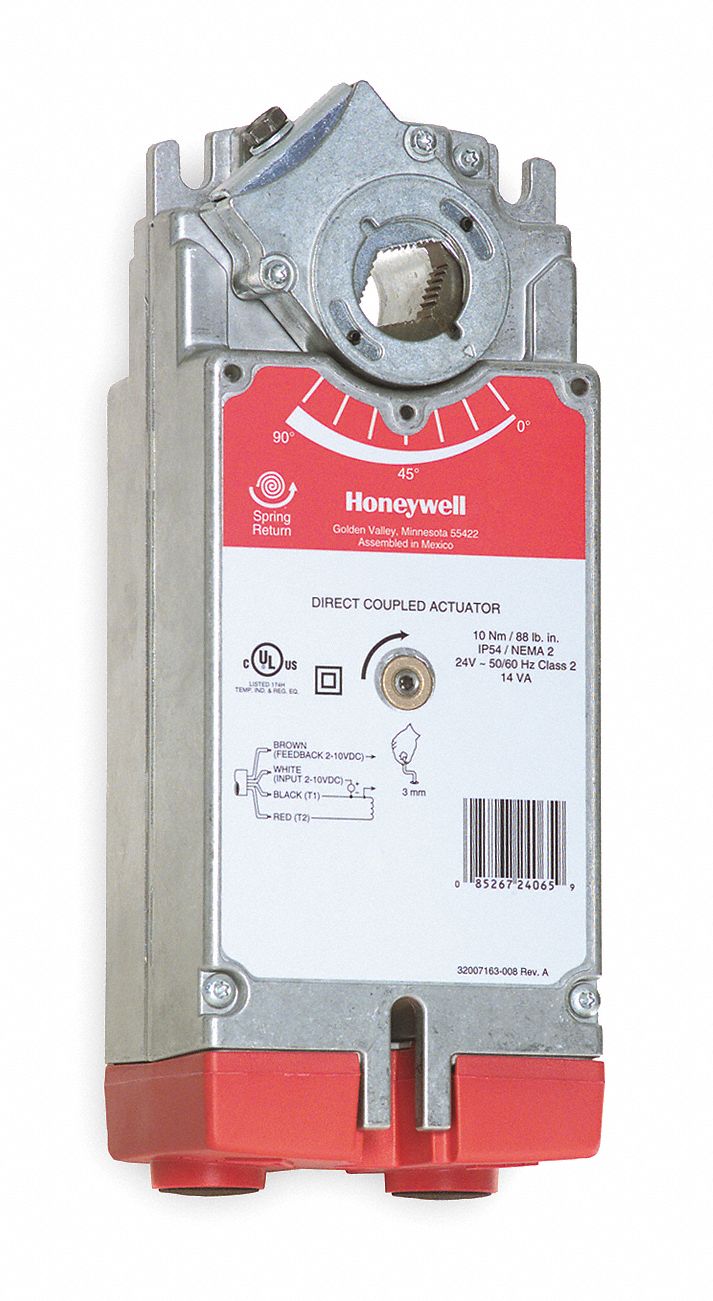

The Honeywell MS7510A2008/U is a fail-safe actuator with spring return designed for ball valves, butterfly valves, cage valves, dampers, and globe valves. It features a self-centering clamping shaft type, 95° stroke degree, and CW/CCW shaft rotation. The actuator operates on 24V AC input voltage and uses screw terminals for electrical connection, with no auxiliary switch included.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Floating Point/Proportional |
| Brand | HONEYWELL |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 24V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MS7510A2008/U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Screw Terminals |
