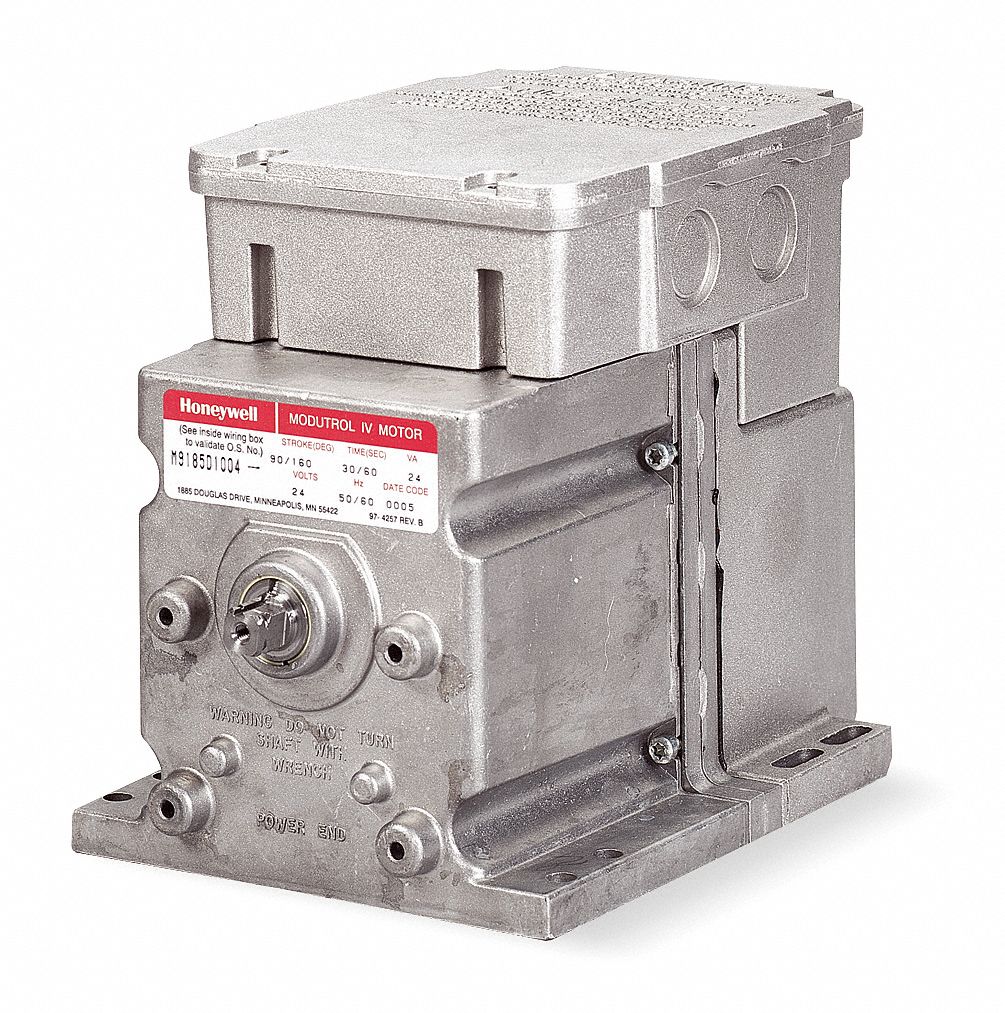

Honeywell 3G-OTH-67531 — Spesifikasi Teknis

Name: Honeywell 3G-OTH-67531 Actuator: Dampers/Valves, Proportional, Spring Return, 60 in-lb, 24V AC, Hardwired, NEMA 3 (MPN M9185D1004/U). Key specifications — Manufacturer Part Number: M9185D1004/U; Shaft Type: Double-Ended; Shaft Rotation: CW; Stroke Degree: 90 to 160°; Power Rating: 23W; Input Voltage: 24V AC; Brand: HONEYWELL; Electrical Connection Type: Hardwired.
Brand: Honeywell

The Honeywell M9185D1004/U is a fail-safe spring-return actuator for dampers and valves, featuring a double-ended shaft with clockwise rotation and a stroke range of 90 to 160°. It operates on 24V AC input with a 23W power rating, is hardwired, and includes a NEMA 3 enclosure.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	24V
Type	Proportional, Spring Return, 60 in-lb, Hardwired, NEMA 3
Brand	HONEYWELL
Shaft Type	Double-Ended
Power Rating	23W
Input Voltage	24V AC
Stroke Degree	90 to 160°
Shaft Rotation	CW
Manufacturer Part Number	M9185D1004/U
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
