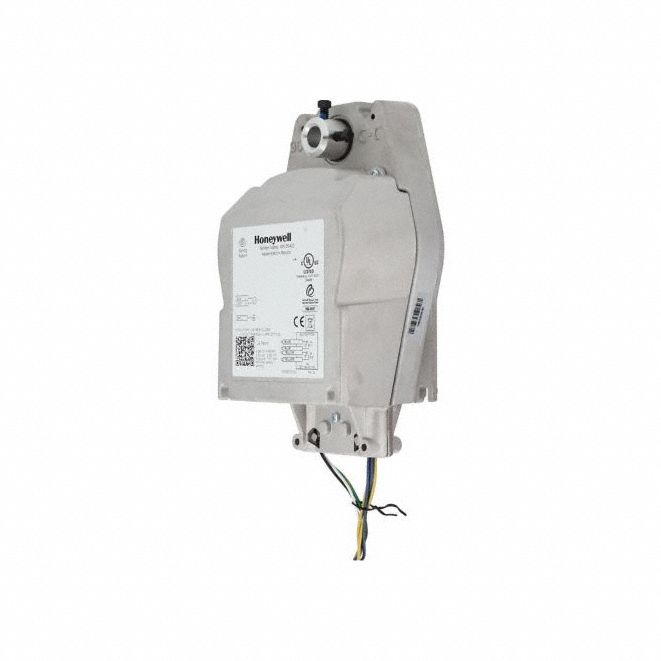

Honeywell 3G-OTH-67188 — Spesifikasi Teknis

Name: Honeywell 3G-OTH-67188 Coupled Actuator: Dampers, On/Off, Spring Return, 30 in-lb, 120V AC, Hardwired, IP40 (MPN MS4104F1210/U). Key specifications — Manufacturer Part Number: MS4104F1210/U; Shaft Type: 1/2" Round; Shaft Rotation: CW/CCW; Stroke Degree: 95 +/-3°; Power Rating: 18W (Running); 9W (Holding); Input Voltage: 120V AC; Brand: HONEYWELL.
Brand: Honeywell

The Honeywell MS4104F1210/U is a fire and smoke rated coupled actuator for dampers, featuring on/off spring return operation with a 95 +/-3° stroke and CW/CCW shaft rotation. It runs on 120V AC with an 18W running power rating, includes an auxiliary switch, and is hardwired with a 1/2" round shaft.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120V
Type	On/Off, Spring Return, 30 in-lb, Hardwired, IP40
Brand	HONEYWELL
Shaft Type	1/2" Round
Power Rating	18W (Running)
Input Voltage	120V AC
Stroke Degree	95 +/-3°
Shaft Rotation	CW/CCW
Manufacturer Part Number	MS4104F1210/U
Auxiliary Switch Included	Yes
Electrical Connection Type	Hardwired
