Hvac 3G-OTH-69326 — Spesifikasi Teknis

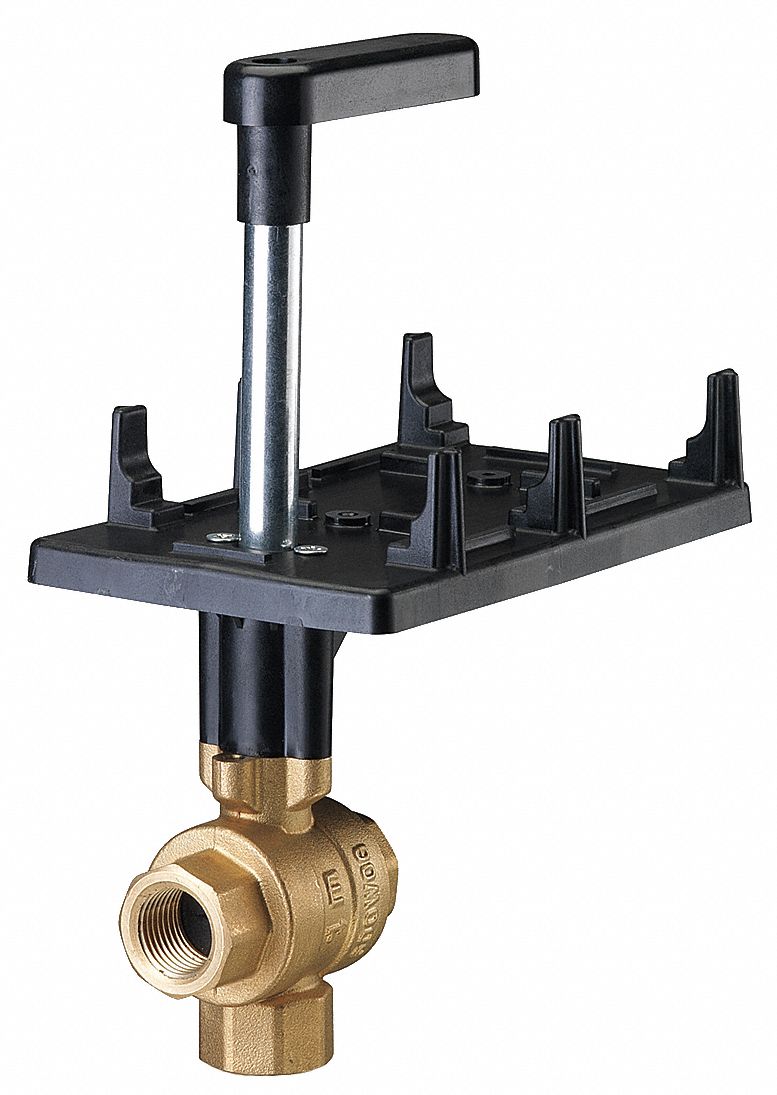

The HVAC Control Ball Valve: 3-Way is a 3-Way NPT Connection Ball Valve from HVAC, featuring a 3/4 in Female NPT connection. It has a 16 CV Flow and 16 Bypass CV Flow, with a 200 psi Close-off rating. The valve is constructed with a Stainless Steel ball and a Brass body, and is designed for use with Water-Glycol Solution to 50%.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| CV Flow | 16 |
| Close-Off | 200 psi |
| For Media | Water-Glycol Solution to 50% |
| Female NPT | 3/4 in |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Bypass CV Flow | 16 |
| Manufacturer Part Number | 599-10360S |
