Hvac 3G-OTH-67997 — Spesifikasi Teknis

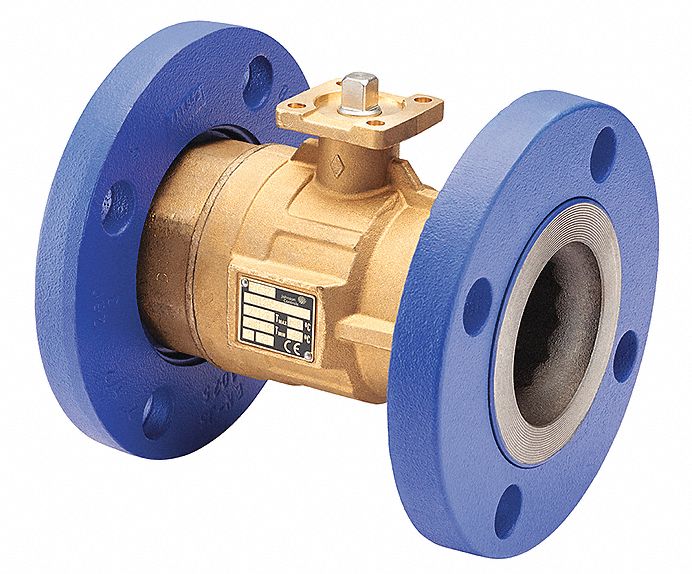

The HVAC Control Ball Valve: 2-Way is a 2-way flanged connection ball valve from HVAC, model VG12A5LV. It features a 3-inch flanged connection, 173 CV flow, and 100 psi close-off, with a stainless steel ball and brass body, designed for media including water-glycol solution up to 50%. This valve is supplied without an actuator.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | No Actuator |
| CV Flow | 173 |
| Flanged | 3 in |
| Close-Off | 100 psi |
| For Media | Water-Glycol Solution to 50% |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Manufacturer Part Number | VG12A5LV |
