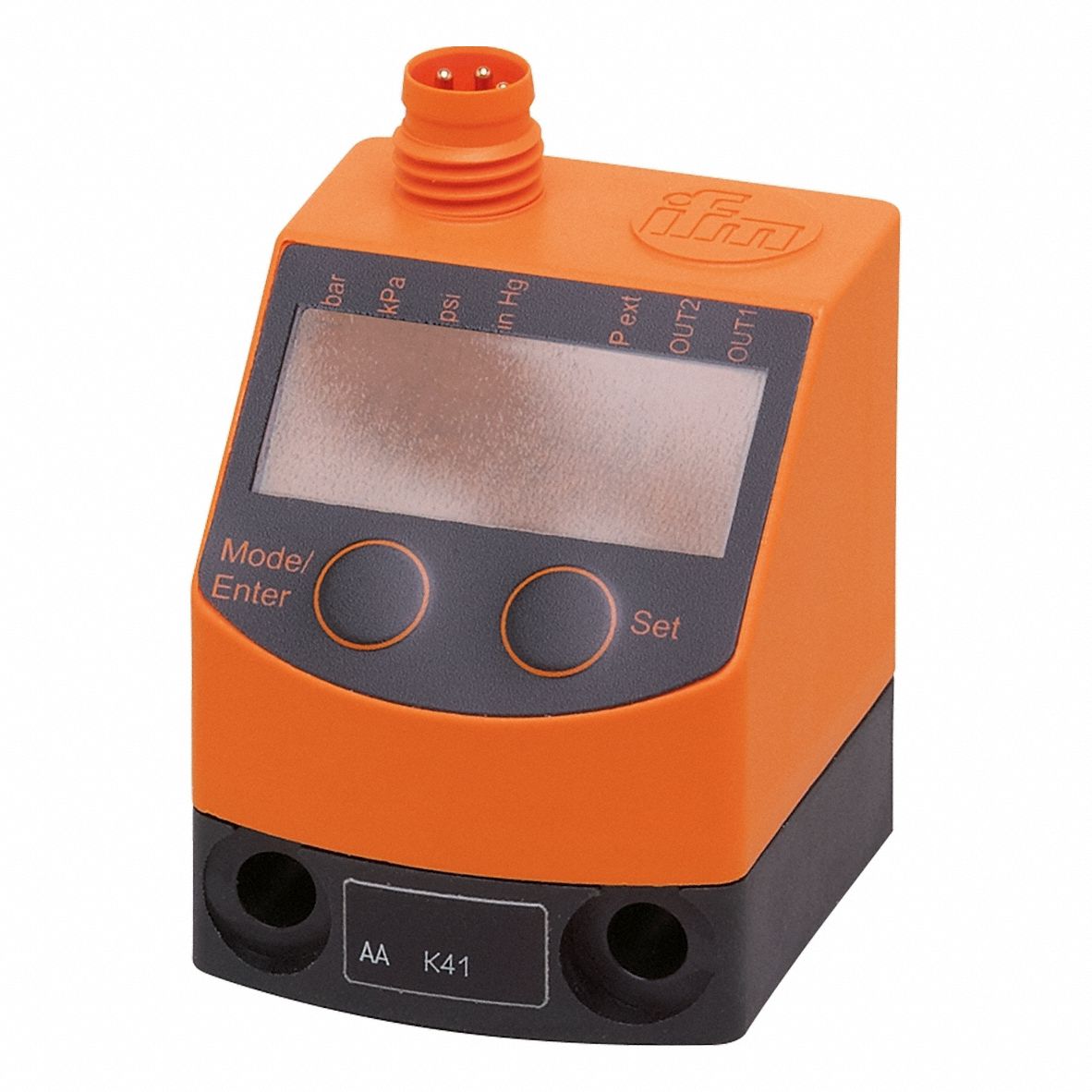

Ifm 3G-OTH-34359 — Spesifikasi Teknis
The IFM PQ Series Digital Pressure Sensor (MPN PQ7809) is a digital vacuum switch designed for compressed air. It features a pressure range of -14.6 psi to 14.6 psi, a PNP output, and an SPST switching function. The sensor has a PBT housing with FKM wetted materials, a G1/8 BSP pressure connection, a 4-pin M8 connector, and an output current rating of 0.1 A.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | IFM |
| Series | PQ |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Compressed Air |
| Housing Material | PBT |
| Wetted Materials | FKM |
| Output Current Rating | 0.1 A |
| Manufacturer Part Number | PQ7809 |
| Pressure Connection Type | G1/8 BSP |
| Electrical Connection Type | 4 Pin M8 Connector |
