Ifm 3G-OTH-34430 — Spesifikasi Teknis

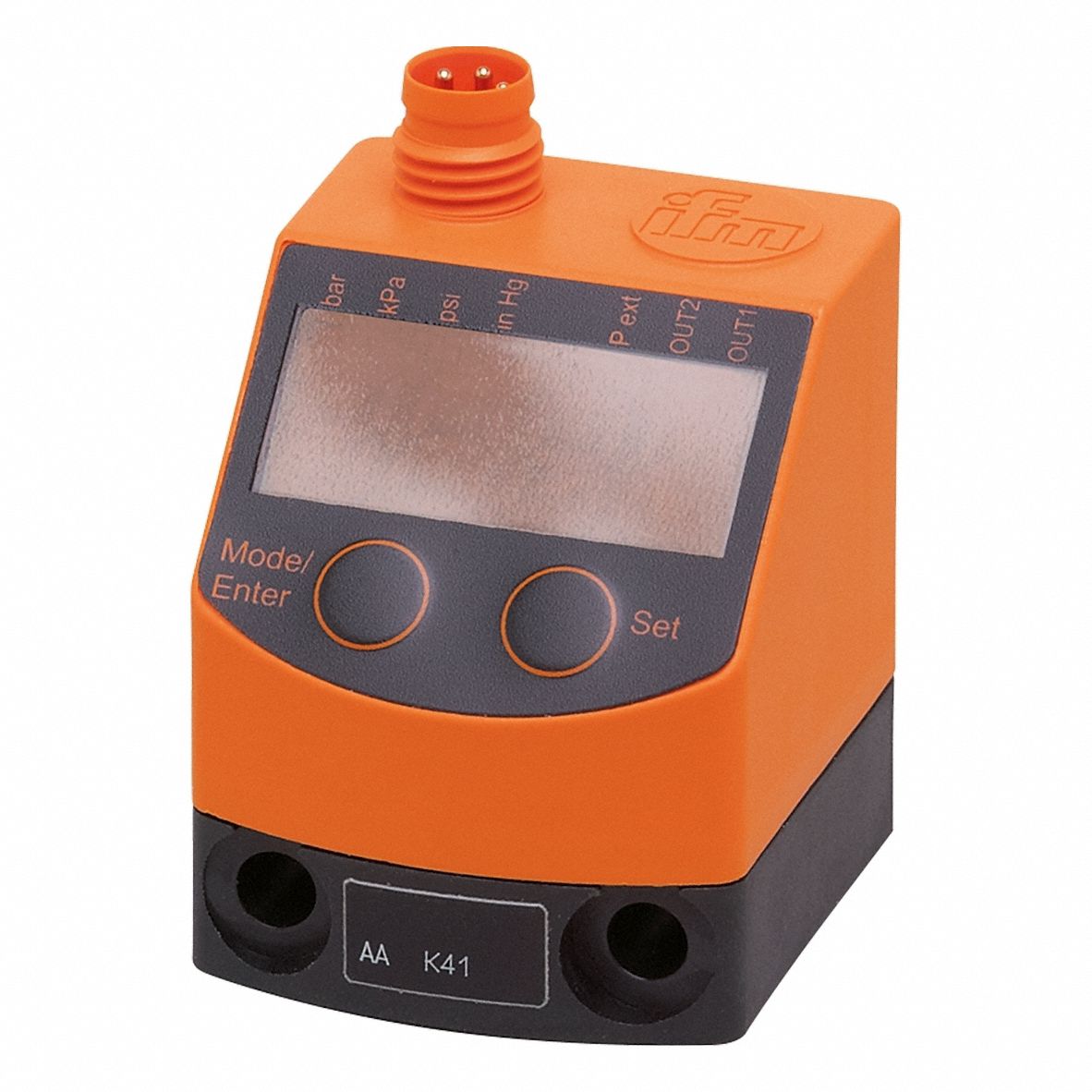

The IFM PQ Series Digital Pressure Sensor (MPN PQ0834) is a digital vacuum switch designed for compressed air media. It features a pressure range of -14.5 psi to 145 psi, an NPN output, and a 0.1 A output current rating. The sensor has a G1/8 BSP pressure connection, a 4-pin M8 electrical connector, a polyester housing, and brass wetted materials.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | IFM |
| Series | PQ |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Compressed Air |
| Housing Material | Polyester |
| Wetted Materials | Brass |
| Output Current Rating | 0.1 A |
| Manufacturer Part Number | PQ0834 |
| Pressure Connection Type | G1/8 BSP |
| Electrical Connection Type | 4 Pin M8 Connector |
