Ifm 3G-OTH-31873 — Spesifikasi Teknis

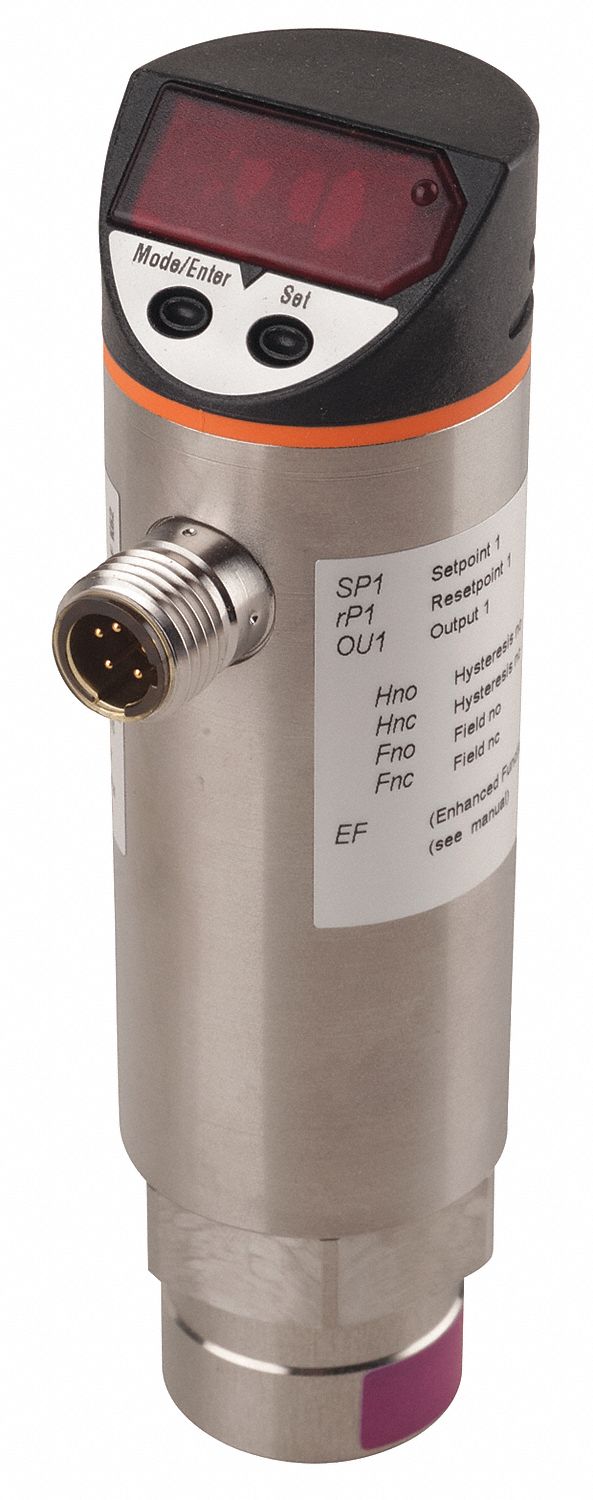

The IFM PN4224 is a digital pressure sensor from the PN series, designed for use with gas media. It features a stainless steel housing and wetted materials, a 1/4 in NPT pressure connection, and a 5 Pin 1/2 in UNF electrical connector. The sensor has an output current rating of 2.5 A and operates as an SPST, 0 psi – 145 psi, Triac device.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | IFM |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Gas |
| Housing Material | Stainless Steel |
| Wetted Materials | Stainless Steel |
| Output Current Rating | 2.5 A |
| Manufacturer Part Number | PN4224 |
| Pressure Connection Type | 1/4 in NPT |
| Electrical Connection Type | 5 Pin 1/2 in UNF Connector |
