Ifm 3G-OTH-176057 — Spesifikasi Teknis

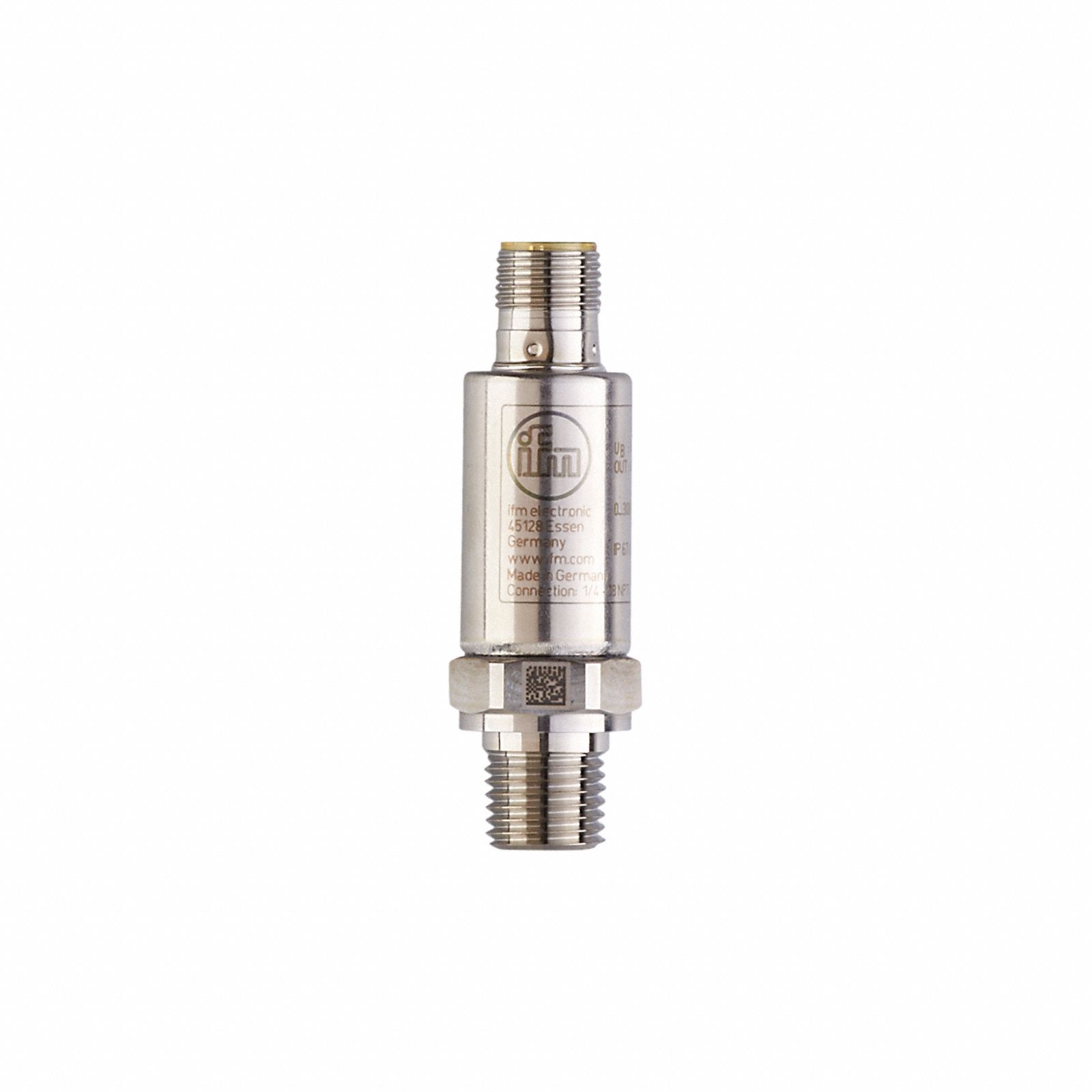

The IFM PT2424 is a miniature pressure transmitter with a 4-pin M12 connector, rated for 580 psi with a 4 to 20mA output. It features ±0.5% accuracy, an IP69K rating, and a stainless steel housing. The transmitter has a burst pressure of 6,525 psi, requires 8.5 to 36V DC power, and uses a 1/4 in male NPT process connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 4 to 20mA, IP67/IP69K |
| Brand | IFM |
| Output | 4 to 20mA |
| Accuracy | ±0.5% |
| Male NPT | 1/4 in |
| IP Rating | IP69K |
| Overpressure | 580 psi |
| M12 Connector | 4-Pin |
| Burst Pressure | 6,525 psi |
| Power Required | 8.5 to 36V DC |
| Pressure Range | 580 psi |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | PT2424 |
| Process Connection Gender | Male |
