Ifm 3G-OTH-33638 — Spesifikasi Teknis

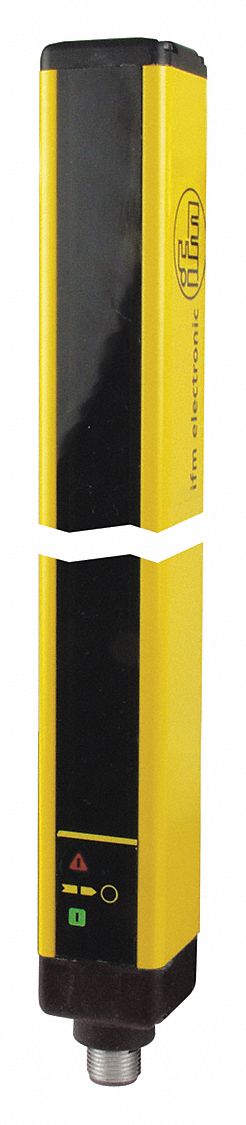

The IFM OY002S light curtain is a 24V DC safety device for finger detection, featuring 22 beams with 14 mm spacing and a 310 mm protected height. It uses 950 nm IR LED light and provides safety and auxiliary outputs rated at 400 mA @ 24V DC. Both receiver and transmitter connect via M12 connectors.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | M12 |
| Beams | 22 |
| Brand | IFM |
| Spacing | 14 mm |
| Cable Lg | 100 m |
| Protected Ht | 310 mm |
| Type Of Light | 950 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 400 mA @ 24V DC |
| Auxiliary Contact Rating | 400 mA @ 24V DC |
| Manufacturer Part Number | OY002S |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
