Ifm 3G-OTH-10812 — Spesifikasi Teknis

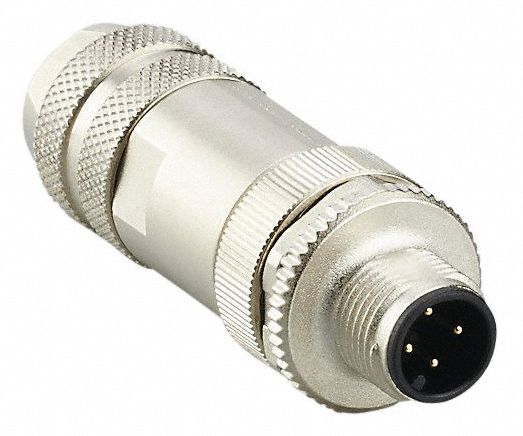

The IFM M12 Circular Connector (SKU 787GG5, MPN E12261) is a field-wireable industrial M12 circular connector with A coding for signal, low-power, and gigabit data applications. It features a 4-pin pin-type connector body, straight orientation, screw terminals, and gold-plated contacts, with a voltage rating of 250V DC. The housing is zinc die-cast with an IP67 rating, and it uses M12 male thread for front mounting.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP67, Screw Terminals, Straight |
| Brand | IFM |
| Coding | A |
| IP Rating | IP67 |
| Application | Signal |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 250V DC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Zinc Die-Cast |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | E12261 |
