Ifm 3G-OTH-08798 — Spesifikasi Teknis

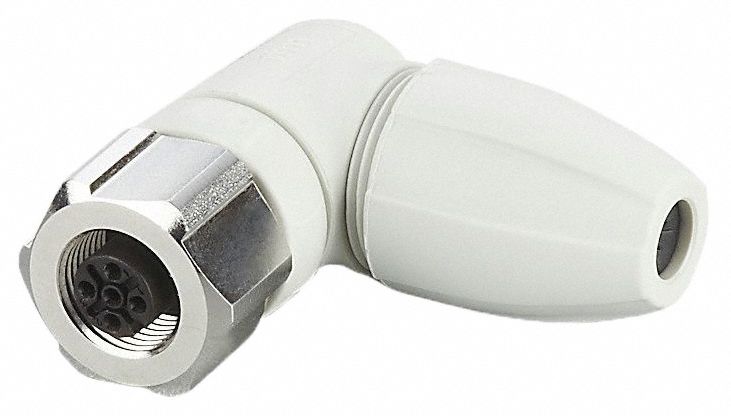

The IFM M12 Circular Connector (MPN EVF570) is an A-coded, field-wireable washdown-rated M12 circular connector designed for DC power applications. It features a 90° angle socket with a female thread, screw terminals, gold-plated contacts, and a nylon housing, rated at 60V DC with IP67 protection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | M12 Female Thread, IP65/IP67/IP68/IP69K |
| Angle | 90° |
| Brand | IFM |
| Coding | A |
| Socket | 5 |
| IP Rating | IP67 |
| Application | DC Power |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Female Thread |
| Voltage Rating | 60V DC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Nylon |
| Connector Body Type | Socket |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | EVF570 |
