Igus 3G-OTH-103823 — Spesifikasi Teknis

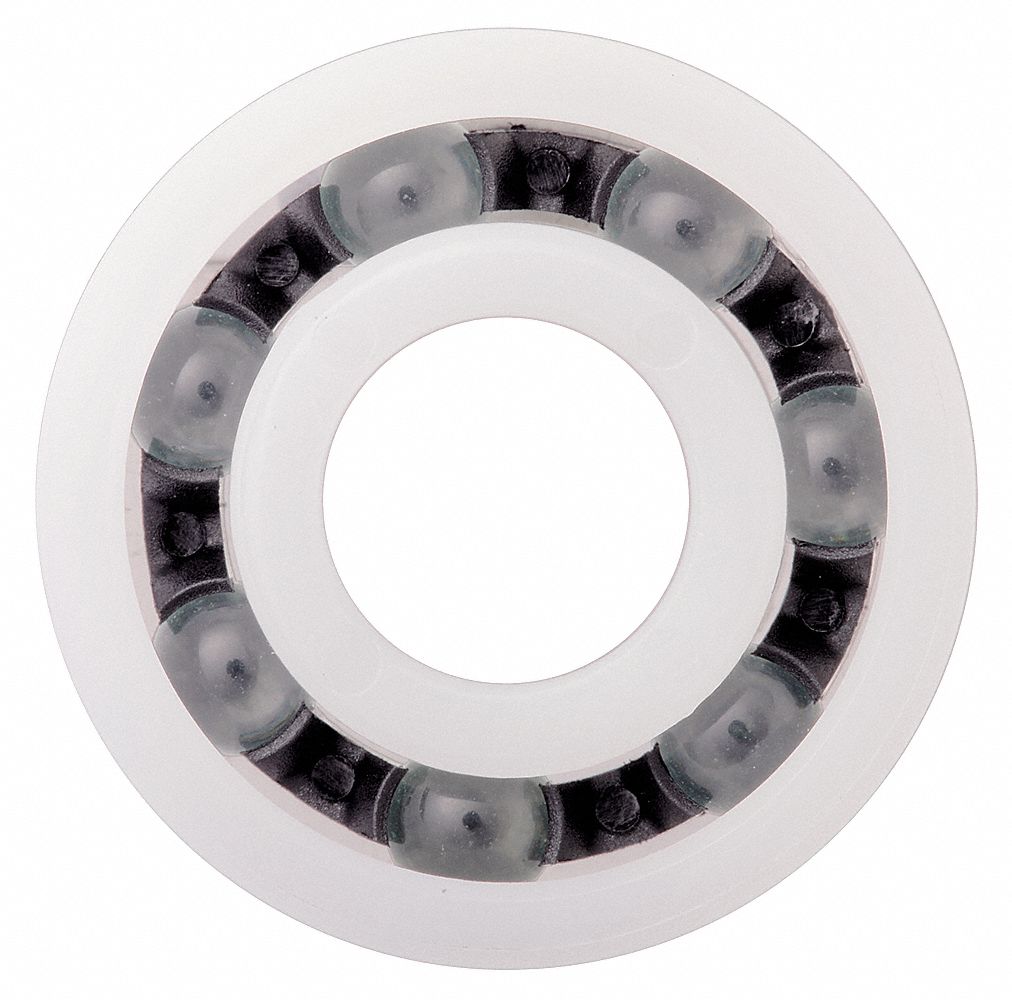

The IGUS Polymer Ball Bearing: 608 is a maintenance-free plastic radial ball bearing with a metric system of measurement. It features an open design, an 8 mm bore, a 22 mm outer diameter, and a 7 mm width, with a polymer ring and a maximum operating temperature of 80°C. This bearing is identified by bearing industry number 608 and manufacturer part number B608B1E.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 22 mm |
| Wd | 7 mm |
| Bore | 8 mm |
| Type | Open, Polymer Ring |
| Max Temp | 80°C |
| System Of Measurement | Metric |
| Bearing Industry Number | 608 |
| Manufacturer Part Number | B608B1E |
