Impeller 3G-OTH-89685 — Spesifikasi Teknis

Name: Impeller 3G-OTH-89685 IMPELLER Electronic Flowmeter: Flow Sensor, Water, Paddlewheel, Stainless Steel, 36 in Insertion (MPN 8SDI0D2N10-0200). Key specifications — Brand: IMPELLER; Seal Material: Viton; Unit Of Measure: Gallons; Accuracy: +/-1%; Max. Voltage: 35V DC; Mounting Orientation: Horizontal; Output Type: 4-20 mA.
Brand: Impeller

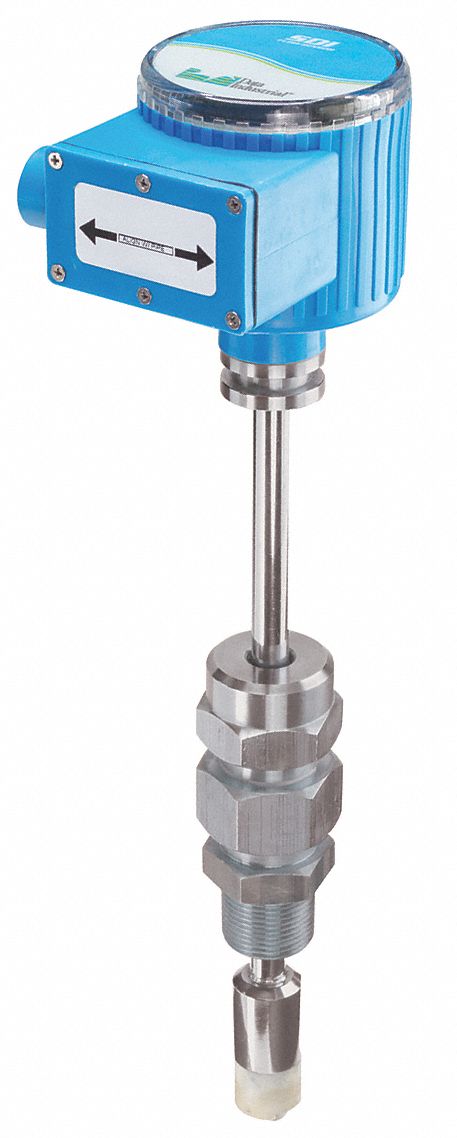

The IMPELLER Electronic Flowmeter is an insertion-style paddlewheel flow sensor for water, featuring a stainless steel construction and a 36-inch insertion length. It provides a 4-20 mA output with +/-1% accuracy, operates on a maximum voltage of 35V DC, and is designed for horizontal mounting with a Viton seal. This unit measures flow in gallons and is identified by manufacturer part number 8SDI0D2N10-0200.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Water, Paddlewheel, Stainless Steel
Brand	IMPELLER
Accuracy	+/-1%
Insertion	36 in
Output Type	4-20 mA
Max. Voltage	35V DC
Seal Material	Viton
Unit Of Measure	Gallons
Mounting Orientation	Horizontal
Manufacturer Part Number	8SDI0D2N10-0200
