Ina 3G-OTH-103503 — Spesifikasi Teknis

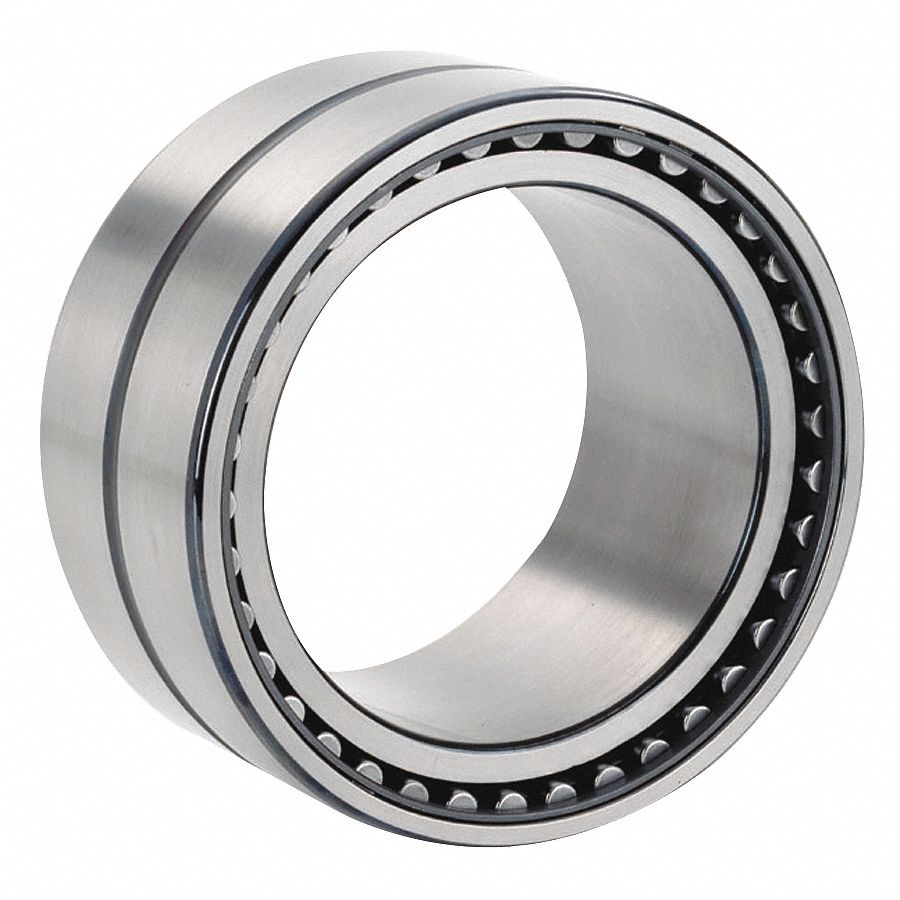

The INA NKI45/25-TV-XL is a heavy-duty needle roller bearing with a single row, non-full complement design. It features a 45 mm bore, 62 mm OD, and 25 mm overall width, constructed from alloy steel with an open configuration. This metric bearing is identified by industry number 45/25 and is suitable for radial load applications requiring a compact cross-section.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 62 mm |
| Bore | 45 mm |
| Type | 45/25, Open, Alloy Steel |
| Brand | INA |
| Overall Wd | 25 mm |
| Bearing Design | NKI |
| Number Of Rows | One |
| Full Complement | No |
| System Of Measurement | Metric |
| Bearing Industry Number | 45/25 |
| Manufacturer Part Number | NKI45/25-TV-XL |
