Iptci Bearings 3G-OTH-107036 — Spesifikasi Teknis

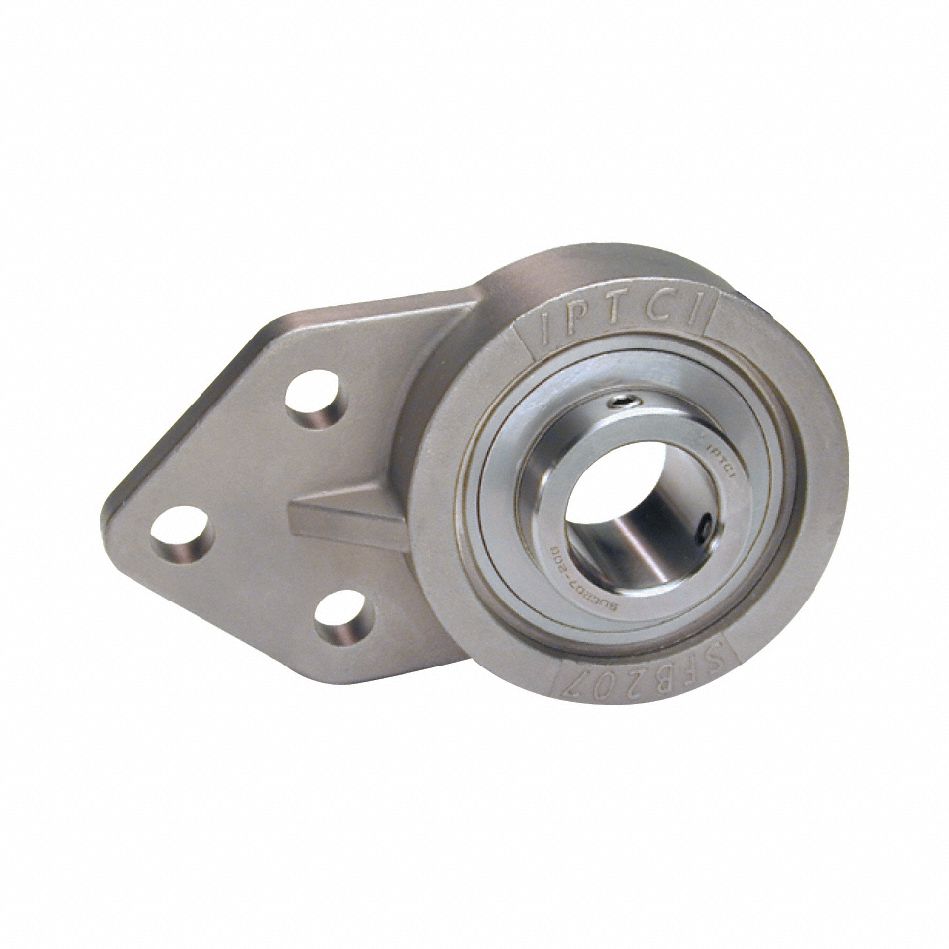

The IPTCI BEARINGS 3 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 20 mm cylindrical bore and a not-split housing. It features H-1 grease lubrication, a 5/16 in mounting bolt size, and set screws for secure shaft attachment. This metric bearing has dimensions of 64 mm length and 34.3 mm width, with the manufacturer part number SUCSFB204-20MM IP69K.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 64 mm |
| Wd | 34.3 mm |
| Bore | 20 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 5/16 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFB204-20MM IP69K |
