Jergens 3G-OTH-184095 — Spesifikasi Teknis

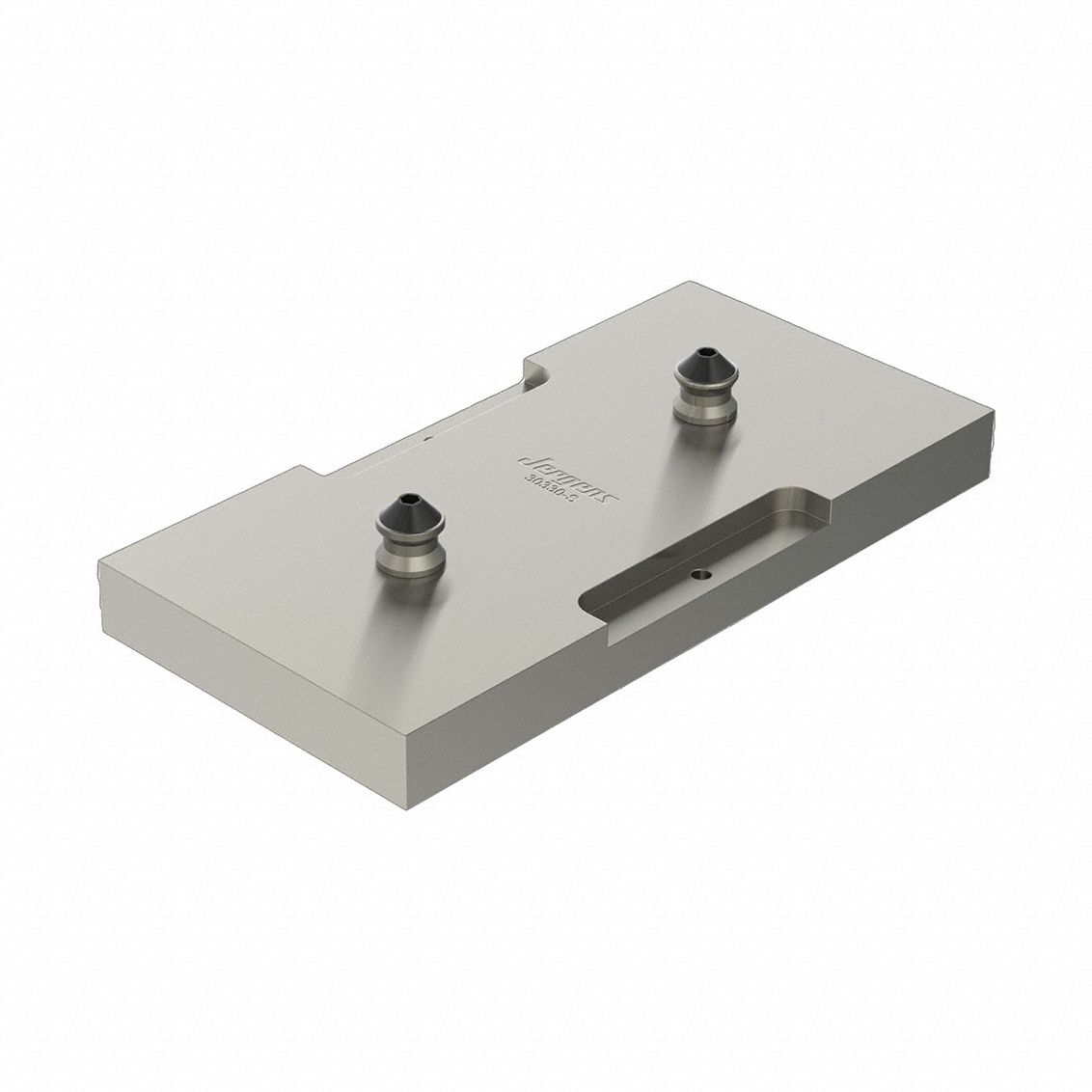

The JERGENS Fixture Plate: ZPS (MPN 30320-A) is a zero point system fixture plate made of aluminum, with a rectangular shape and dimensions of 150 mm W x 300 mm L x 47.4 mm H, weighing 6.83 lb. It features a thread size of M10x1.50, a pull stud size of K10, and includes an installed zero point stud. This fixture plate is compatible with pull stud part number 2-Module Subplates.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| H | 150 mm W x 300 mm L x 47.4 mm |
| Wt | 6.83 lb |
| Type | Aluminum, Rectangular |
| Brand | JERGENS |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K10 |
| Installed Components | Zero Point Stud |
| Manufacturer Part Number | 30320-A |
| Compatible Pull Stud Part Number | 2-Module Subplates |
