Jergens 3G-OTH-184086 — Spesifikasi Teknis

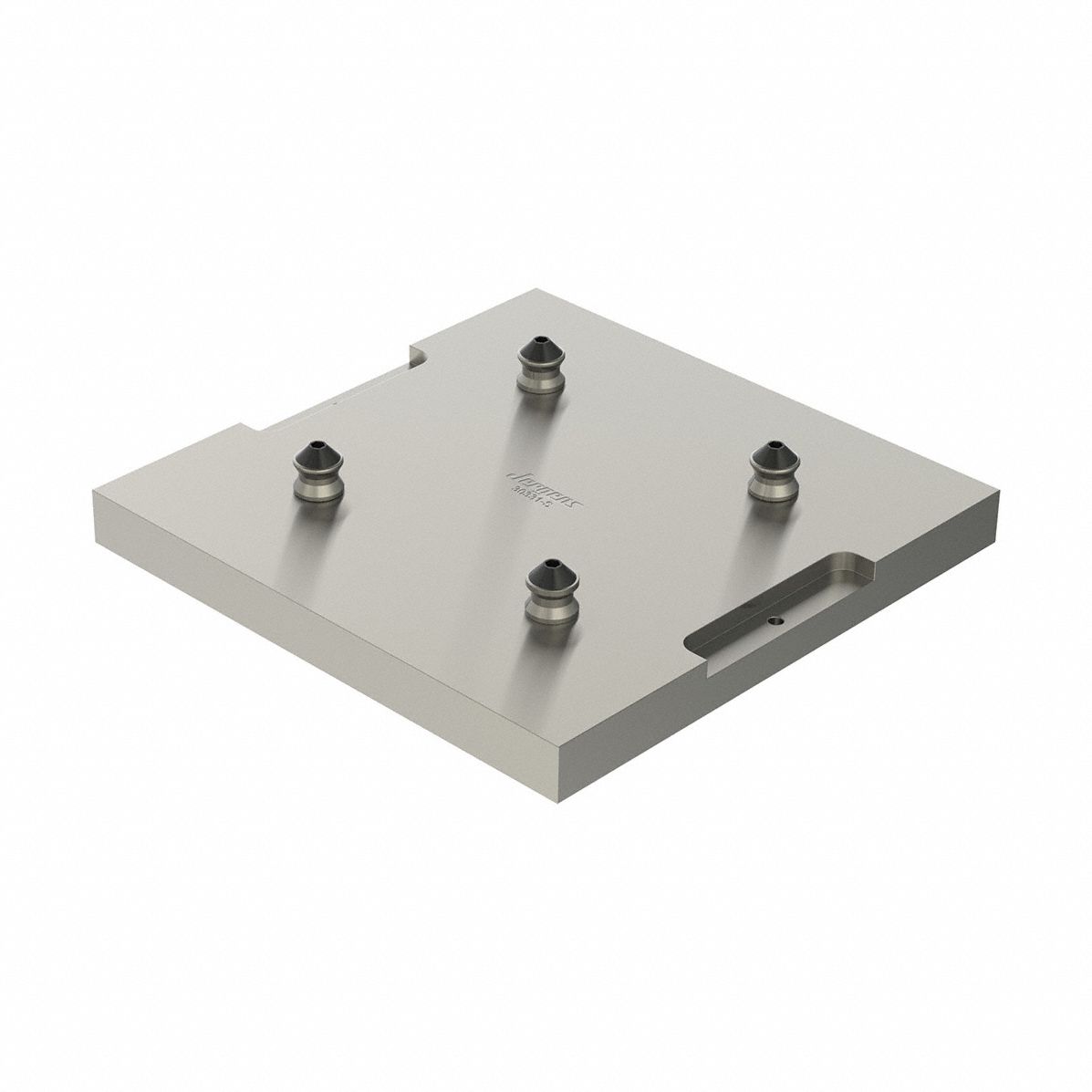

The JERGENS Fixture Plate: ZPS is a steel, square zero point system fixture plate measuring 300 mm W x 300 mm L x 47.4 mm H and weighing 38.8 lb. It features a thread size of M10x1.50, a pull stud size of K10, and includes four installed zero point studs (MPN 30321-S). This plate is compatible with 4-Module Subplates for pull stud integration.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| H | 300 mm W x 300 mm L x 47.4 mm |
| Wt | 38.8 lb |
| Type | Steel, Square |
| Brand | JERGENS |
| Studs | 4 |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K10 |
| Installed Components | Zero Point Stud |
| Manufacturer Part Number | 30321-S |
| Compatible Pull Stud Part Number | 4-Module Subplates |
