Jergens 3G-OTH-184087 — Spesifikasi Teknis

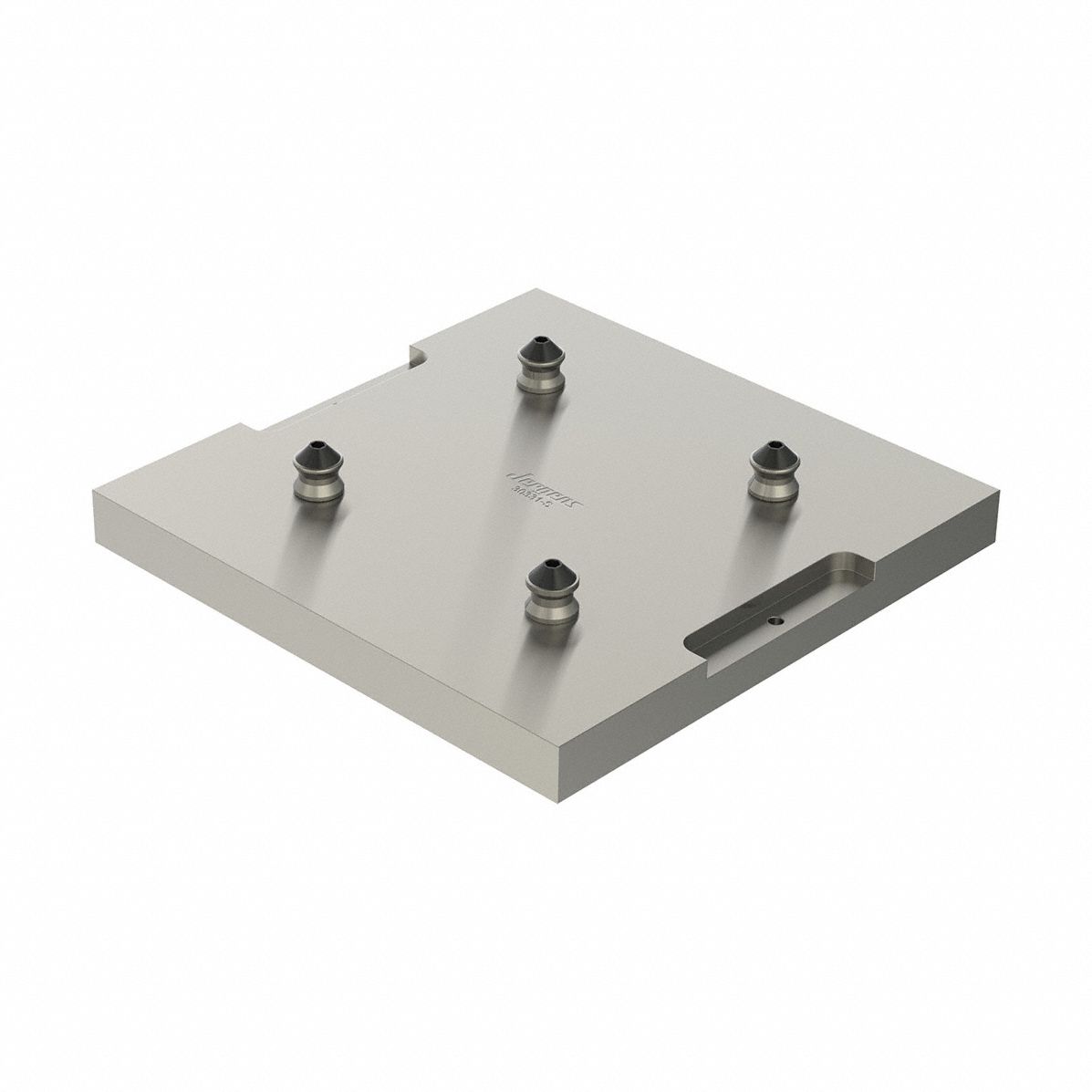

The JERGENS Fixture Plate: ZPS is a zero point system fixture plate, model 30331-A, constructed of aluminum in a square 400 mm W x 400 mm L x 70.1 mm H format weighing 36.6 lb. It features a thread size of M10x1.50, a pull stud size of K20, and includes four installed zero point studs. This plate is compatible with 4-Module Subplates as the pull stud part number.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| H | 400 mm W x 400 mm L x 70.1 mm |
| Wt | 36.6 lb |
| Type | Aluminum, Square |
| Brand | JERGENS |
| Studs | 4 |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K20 |
| Installed Components | Zero Point Stud |
| Manufacturer Part Number | 30331-A |
| Compatible Pull Stud Part Number | 4-Module Subplates |
