Johnson Controls 3G-OTH-67011 — Spesifikasi Teknis

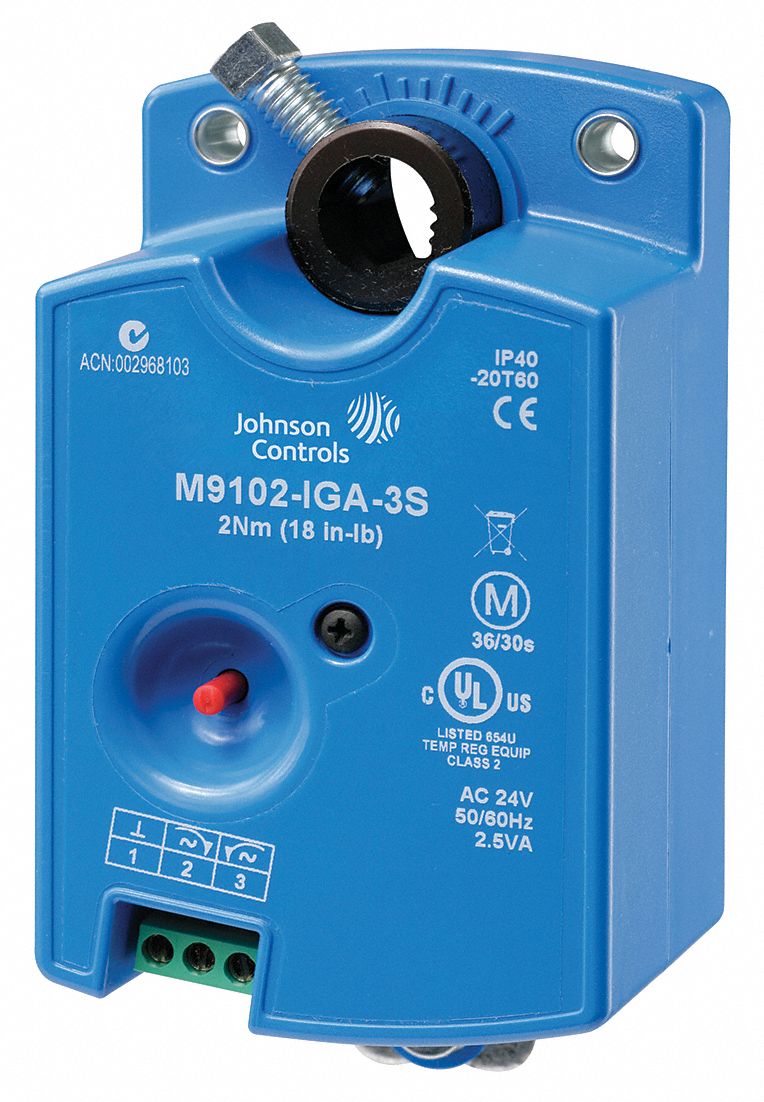

The JOHNSON CONTROLS M9102-IGA-3S is a non-fail-safe actuator for dampers, VAV boxes, and zone valves. It operates with a 24V AC input, features a self-centering clamping shaft, and provides a 90° stroke with CW/CCW rotation. This floating-point actuator with timeout/on/off control is compatible with building automation systems and uses screw terminals for electrical connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Floating Point with Timeout/On/Off, Non-Spring Return |
| Brand | JOHNSON CONTROLS |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 24V AC |
| Stroke Degree | 90° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | M9102-IGA-3S |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
