Jw Winco 3G-OTH-518060 — Spesifikasi Teknis

Name: Jw Winco 3G-OTH-518060 JW WINCO Hygienic End Cap: M12 Thread Size, 15.5 mm Thread Lg, 50 mm Inside Ht, 25.8 mm Overall Dia (MPN 20.1-M12-56-H). Key specifications — Seal Material: H-NBR; Standards: EHEDG Certified; Sleeve Material Grade: 304; Sleeve Material: Stainless Steel.
Brand: Jw Winco

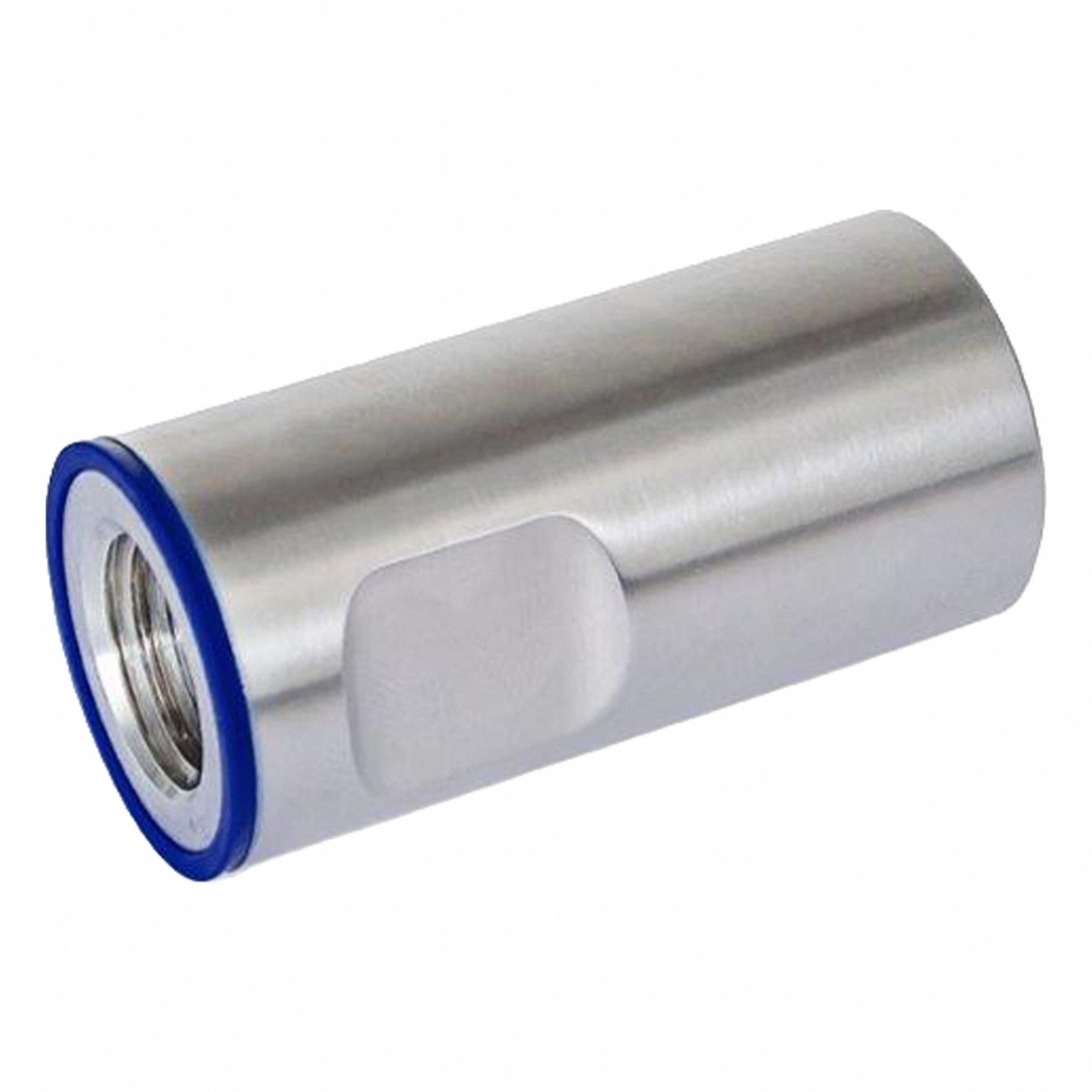

The JW WINCO Hygienic End Cap (MPN 20.1-M12-56-H) is a protective end cap for hygienic leveling mounts, featuring an M12 thread size with a 15.5 mm thread length, 50 mm inside height, and 25.8 mm overall diameter. It is constructed with a 304 stainless steel sleeve and an H-NBR seal, and is EHEDG Certified for sanitary applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Inside Ht	50 mm
Standards	EHEDG Certified
Thread Lg	15.5 mm
Overall Dia	25.8 mm
Seal Material	H-NBR
Sleeve Material	Stainless Steel
Sleeve Material Grade	304
Manufacturer Part Number	20.1-M12-56-H
