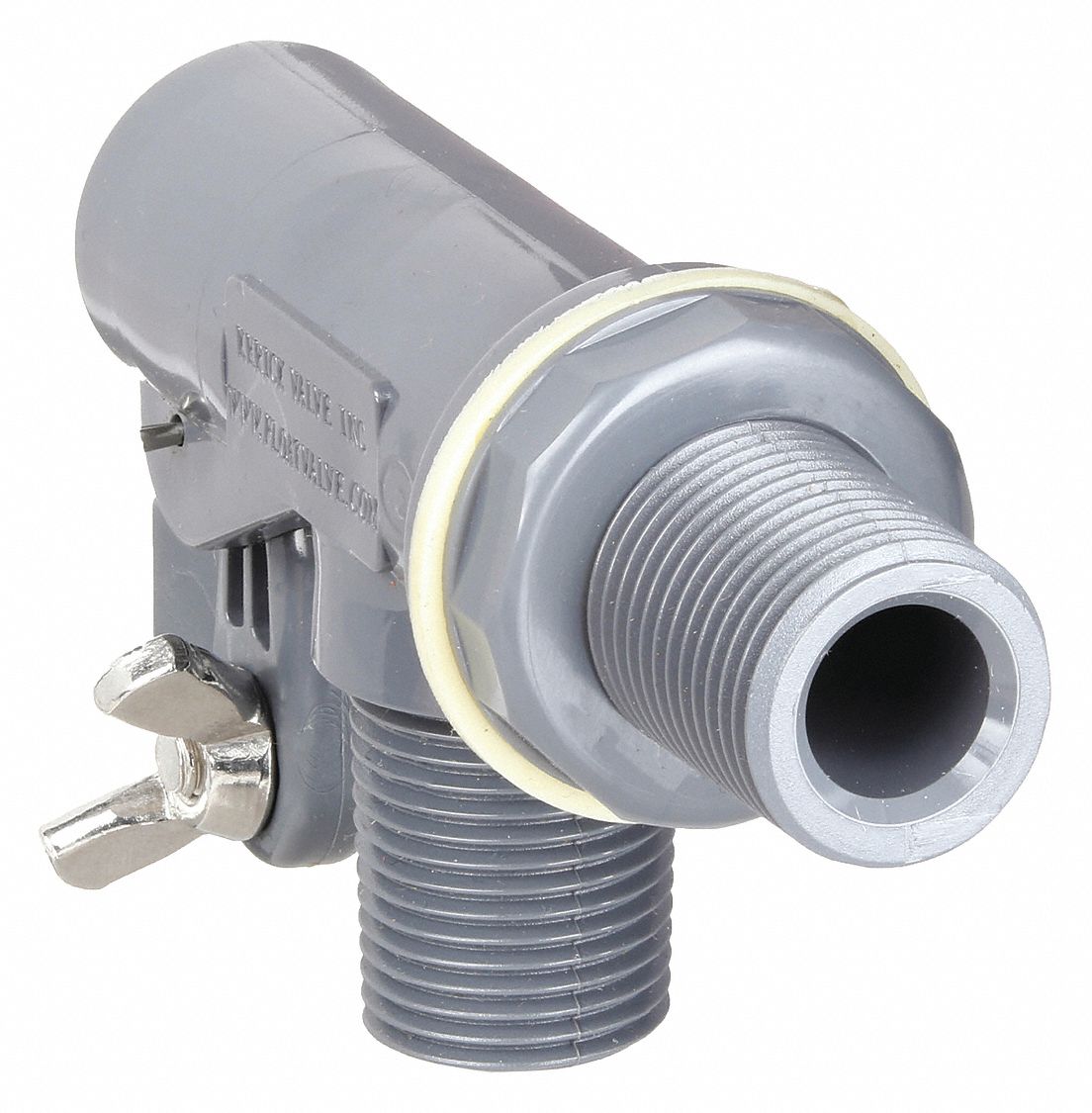

Kerick 3G-OTH-438763 — Spesifikasi Teknis
The KERICK PT75LS is a general service float valve body designed for water media, featuring an angle valve body style with bulkhead mounting. It has a flow rate of 13 gpm at 30 psi, adjustable arm, and 3/4" MNPT inlet and outlet connections with male NPT threads. The valve body includes a Santoprene rubber seal, meets Standard 169 and NSF 61 certifications, and has a 1/4"-20 rod thread; it is supplied without a float and rod.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| MNPT | 3/4 in |
| Type | Angle Valve Body, Float Valve Body, Bulkhead, PVC |
| Brand | KERICK |
| Mounting | Bulkhead |
| Flow Rate | 13 gpm @ 30 psi |
| For Media | Water |
| Standards | Standard 169 |
| Rod Thread | 1/4"-20 |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | No Float and Rod |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | PT75LS |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
