Ledvance 3G-OTH-383318 — Spesifikasi Teknis

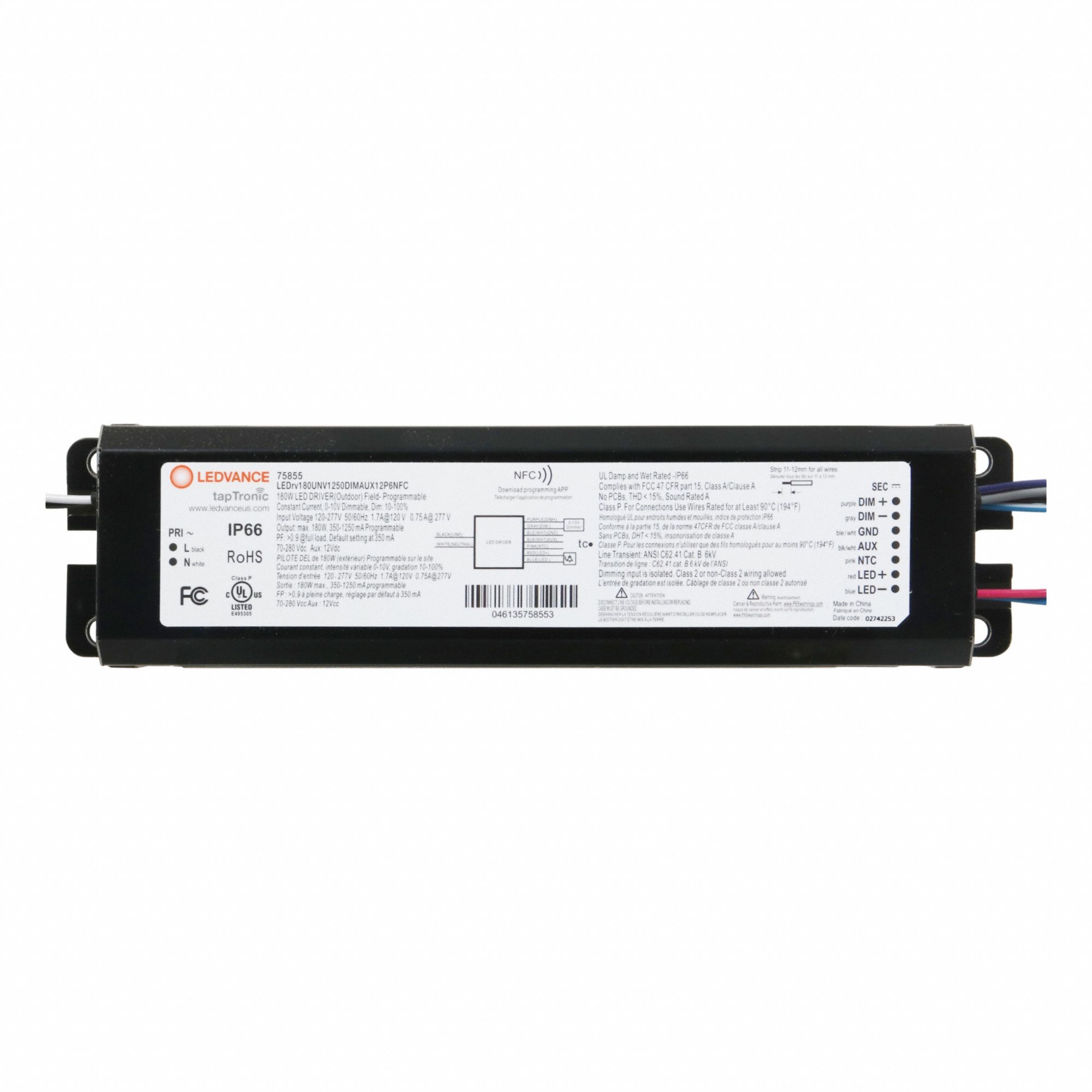

The LEDVANCE LED Driver: Class 2 is an app-programmable driver with a 180 W max power output, operating on 120 to 277V AC input and delivering 70 to 280V DC output. It features a 0-10V dimming method and an output current range of 350 to 1,250 mA, identified by MPN LEDrv180UNV1250DIMAUX12P6NFC.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 120 to 277V |
| DC | 70 to 280V |
| Type | 0-10V |
| Brand | LEDVANCE |
| Dimming Method | 0-10V |
| Output Current | 350 to 1,250 mA |
| Output Voltage | 70 to 280V DC |
| Max. Power Output | 180 W |
| Manufacturer Part Number | LEDrv180UNV1250DIMAUX12P6NFC |
