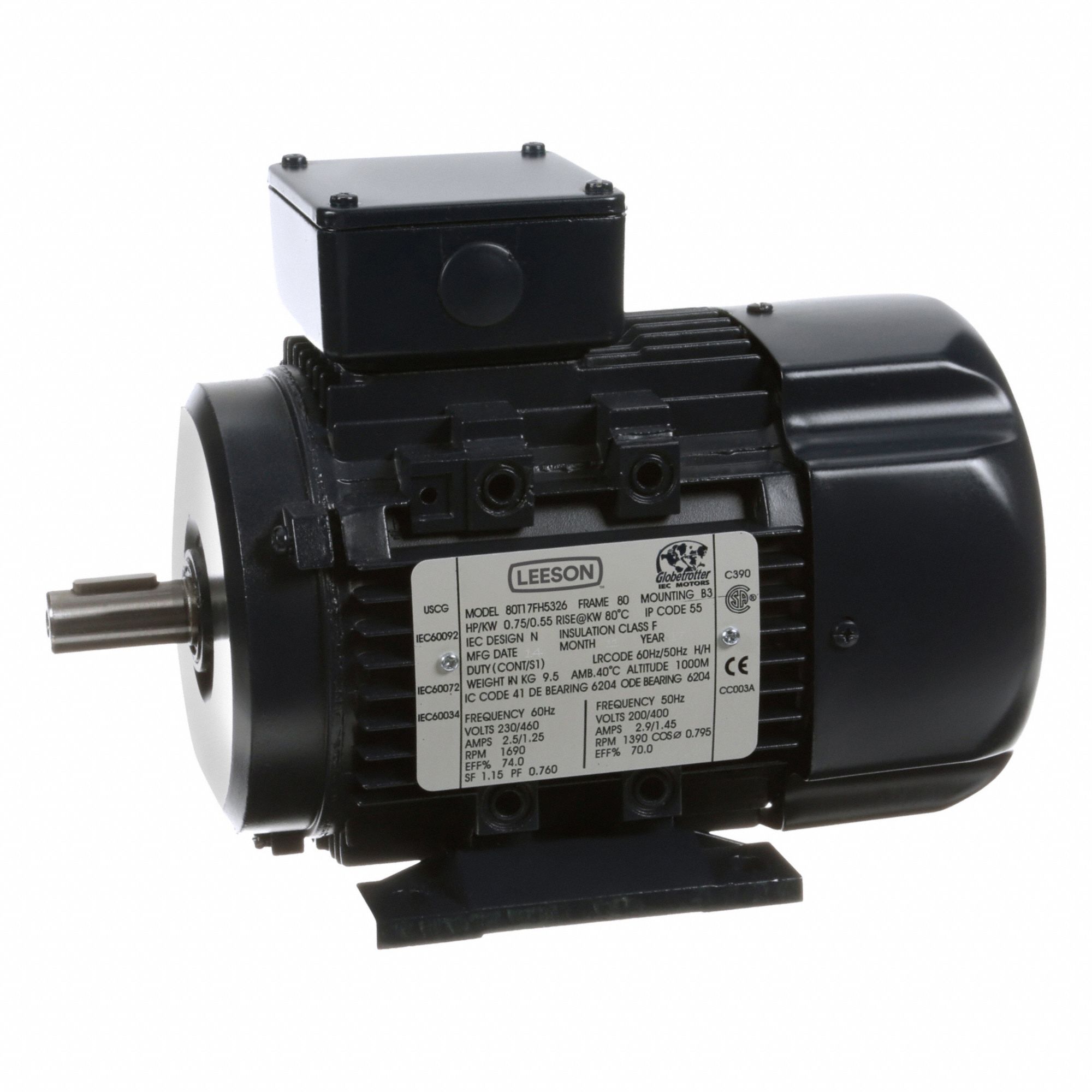

Leeson 3G-OTH-55868 — Spesifikasi Teknis

Name: Leeson 3G-OTH-55868 LEESON Metric Motor: 3/4 hp, Rigid Base Mount, 80 Frame Size, Totally Enclosed Fan Cooled, 1690 RPM (MPN 80T17FH5326). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Amps @ 60 Hz: 2.5/1.3 A; Nameplate RPM @ 60 Hz: 1690 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON Metric Motor (SKU 24ME25) is a 3/4 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 1690 RPM at 60 Hz, with a full load amp rating of 2.5/1.3 A at 230/460V AC. This 80 frame size motor (MPN 80T17FH5326) is designed for industrial applications requiring a compact, metric-standard motor.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Rigid Base Mount, Totally Enclosed Fan Cooled, 1690 RPM
Brand	LEESON
Frame Size	80
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1690 RPM
Full Load Amps @ 60 Hz	2.5/1.3 A
Manufacturer Part Number	80T17FH5326
Nameplate Voltage @ 60 Hz	230/460V AC
