Leeson 3G-OTH-54698 — Spesifikasi Teknis

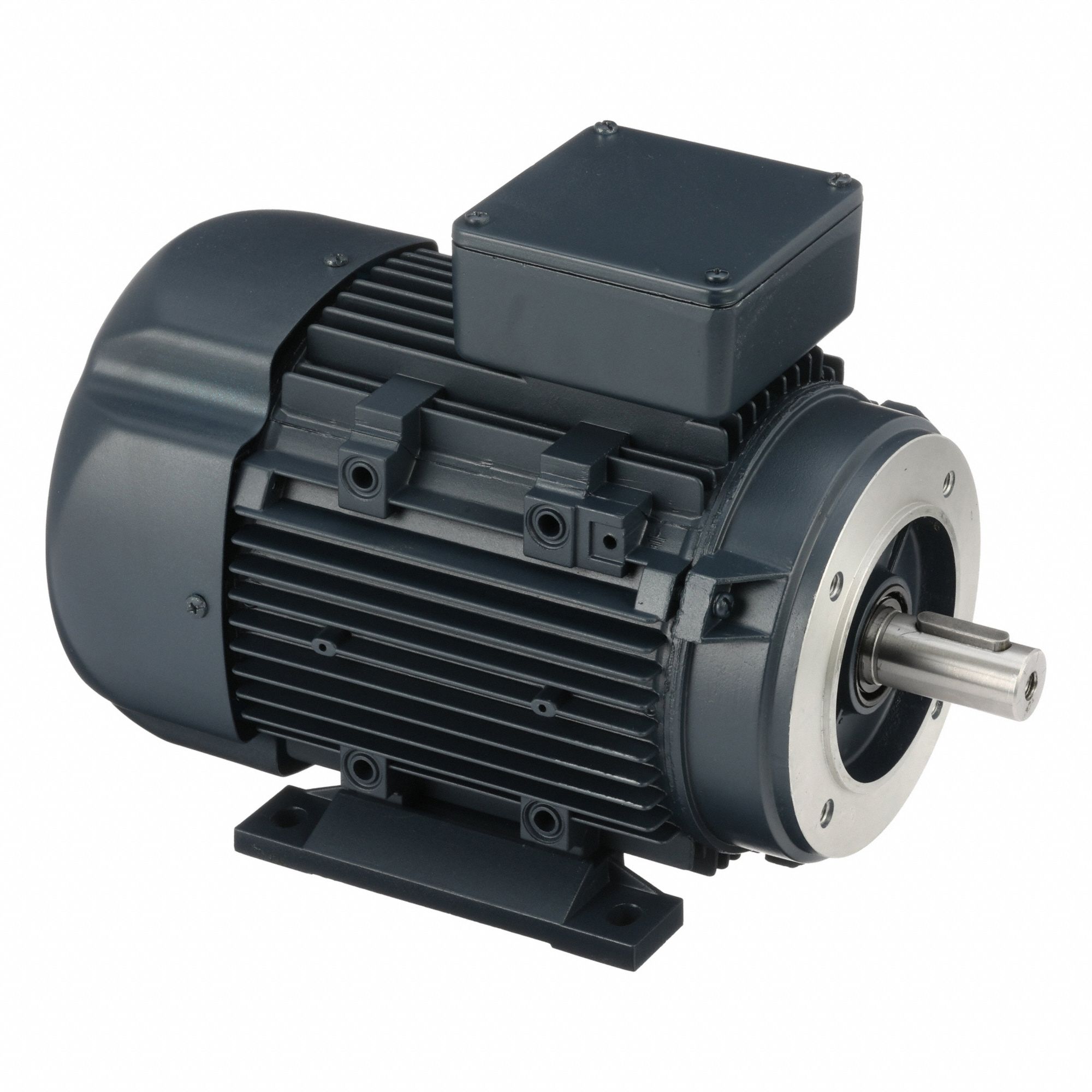

The LEESON Metric Motor (SKU 26VX39) is a 3 hp, C-Face with Rigid Base 3-Phase IEC General Purpose AC Motor. It features a TEFC enclosure, 1,800 RPM nameplate speed at 60 Hz, and full load amps of 7.2/3.6 A at 230/460V AC. This motor is designed for industrial applications requiring a 90L frame size.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | LEESON |
| Frame Size | 90L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,800 RPM |
| Full Load Amps @ 60 Hz | 7.2/3.6 A |
| Manufacturer Part Number | 090LT34FH6420 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
