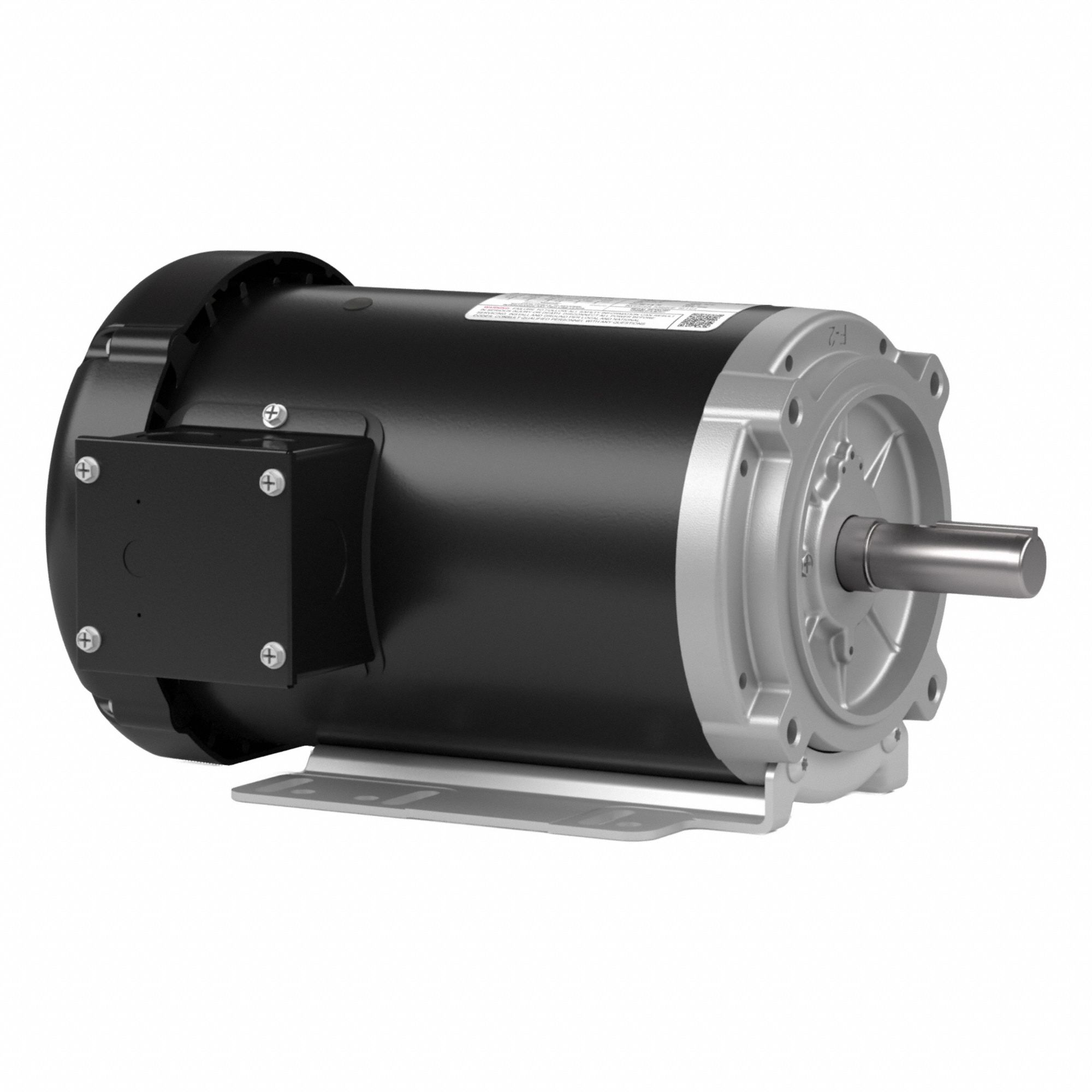

Leeson 3G-OTH-55283 — Spesifikasi Teknis

Name: Leeson 3G-OTH-55283 LEESON General Purpose 3 Phase: Universal Mount, Totally Enclosed Fan Cooled, 3/4 hp, 1,140 RPM (MPN 145TTFR16121). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 3.1-3.25/1.6 A; Nameplate RPM @ 60 Hz: 1,140 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose 3 Phase: Universal Mount is a TEFC (Totally Enclosed Fan Cooled) AC motor with a nameplate RPM of 1,140 RPM at 60 Hz. It operates at 3/4 hp with a nameplate voltage of 208-230/460V AC and a full load current of 3.1-3.25/1.6 A at 60 Hz. This universal mount motor is designed for general-purpose three-phase applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Totally Enclosed Fan Cooled, 3/4 hp, 1,140 RPM
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,140 RPM
Manufacturer Part Number	145TTFR16121
Full Load Current @ 60 Hz	3.1-3.25/1.6 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
