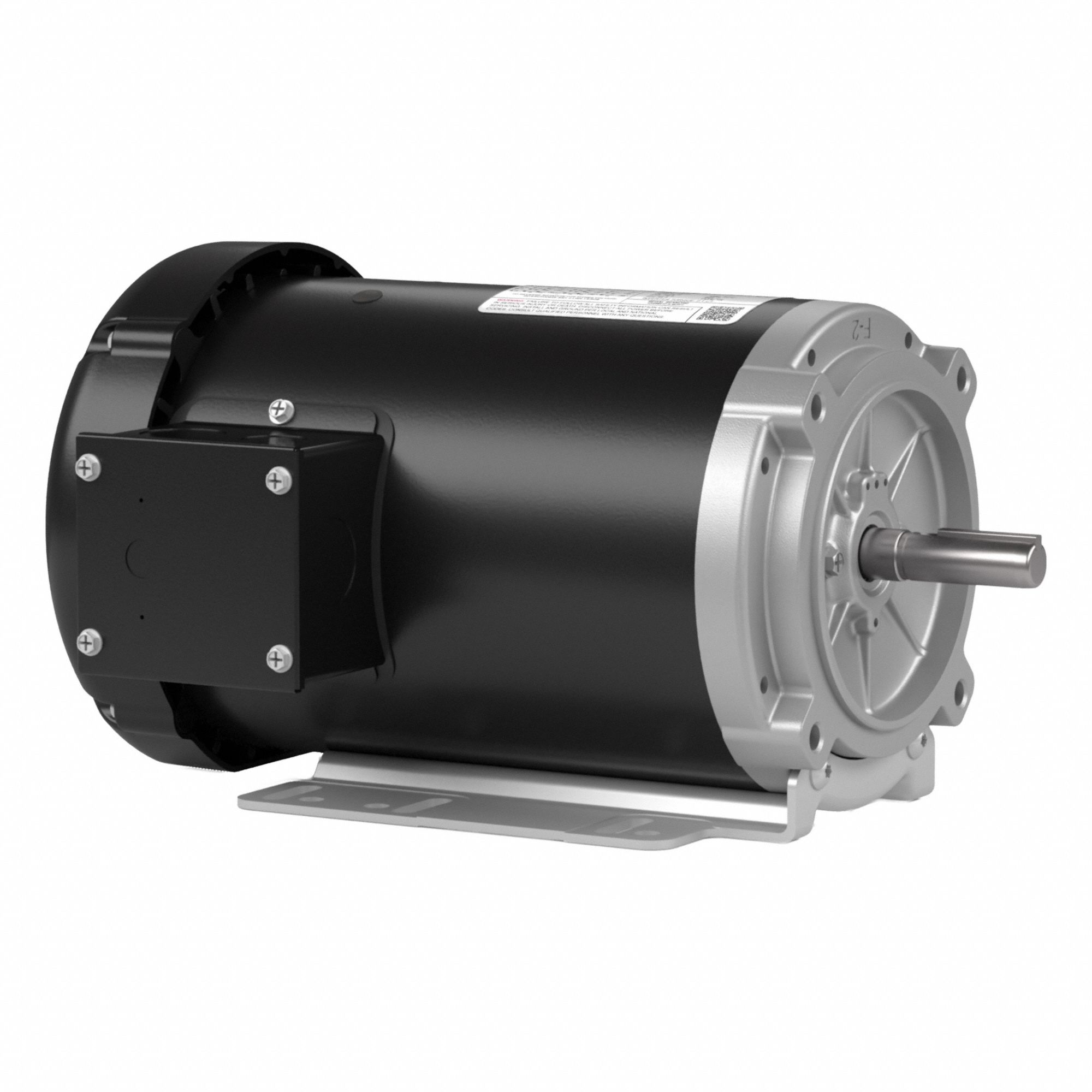

Leeson 3G-OTH-55137 — Spesifikasi Teknis

Name: Leeson 3G-OTH-55137 LEESON General Purpose 3 Phase: Universal Mount, Open Drip Proof, 3 hp, 208-230/460V AC, 1,725 RPM (MPN 056T17D99086). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 8.3-8.4/4.2 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose 3 Phase: Universal Mount is a 3 hp, ODP-enclosed AC motor with a nameplate voltage of 208-230/460V AC at 60 Hz. It operates at 1,725 RPM and draws a full load current of 8.3-8.4/4.2 A at 60 Hz. This universal-mount motor is designed for general-purpose three-phase applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	208-230/460V
Type	Open Drip Proof, 3 hp, 1,725 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17D99086
Full Load Current @ 60 Hz	8.3-8.4/4.2 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
