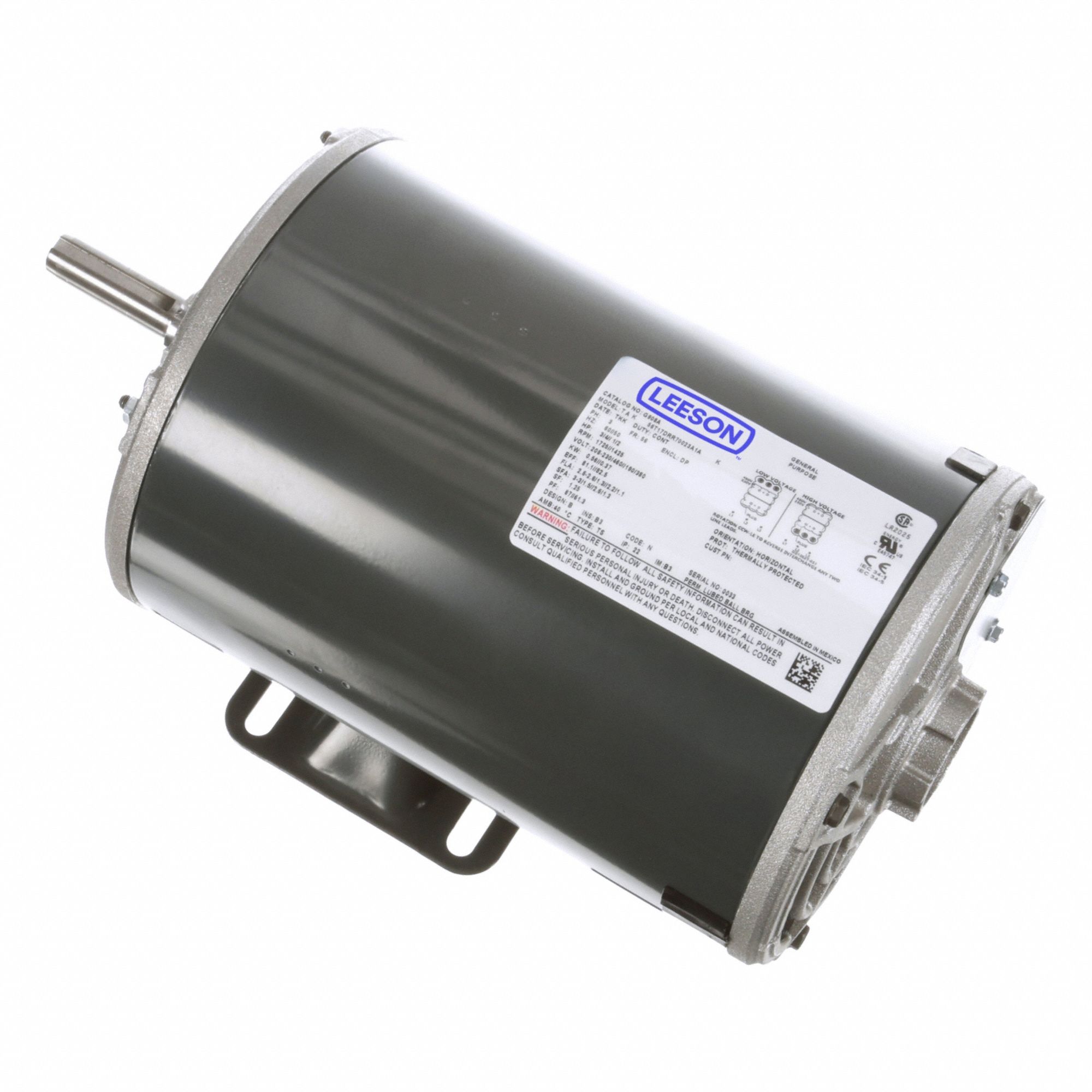

Leeson 3G-OTH-54984 — Spesifikasi Teknis

Name: Leeson 3G-OTH-54984 LEESON General Purpose Motor: Rigid Base Mount, Open Drip Proof, 3/4 hp, 208-230/460V AC, 1,725 RPM (MPN 056T17DRR70023A1). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 2.6-2.6/1.3 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose Motor: Rigid Base Mount (SKU 54JH49) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 1,725 RPM at 60 Hz and operates at 208-230/460V AC with a full load current of 2.6-2.6/1.3 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	208-230/460V
Type	Open Drip Proof, 3/4 hp, 1,725 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17DRR70023A1
Full Load Current @ 60 Hz	2.6-2.6/1.3 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
