Leeson 3G-OTH-115587 — Spesifikasi Teknis

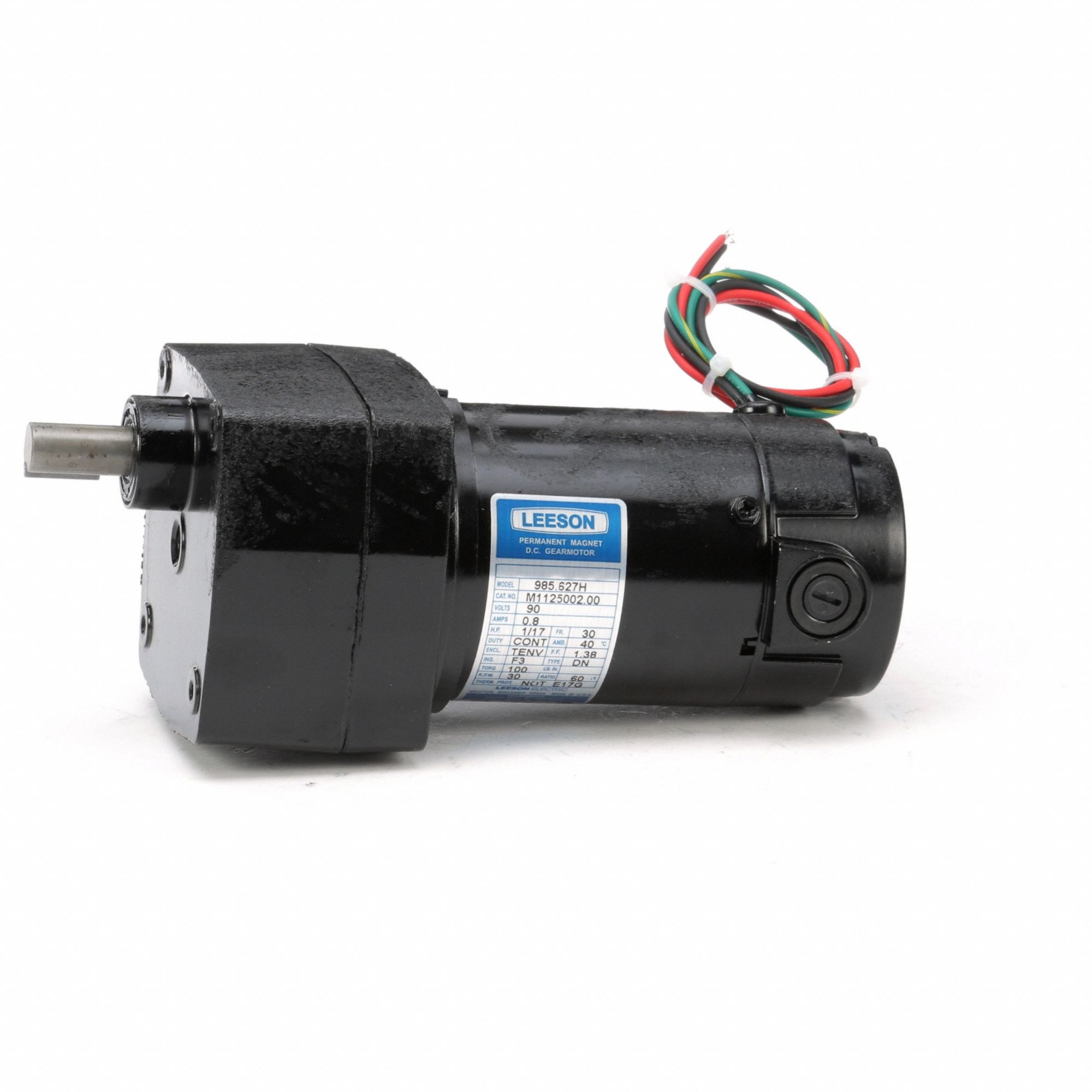

The LEESON DC Gearmotor: Parallel is a right angle DC gearmotor featuring a permanent magnet DC motor type. It operates at 90V DC with a full load current of 0.8 A, delivering 30 RPM and a maximum torque of 100 in-lb, with a 60:1 gear ratio and TENV enclosure. This model (MPN M1125002.00) is configured for left-hand output.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 90V |
| Type | Left Hand, TENV, 30 RPM, 100 in-lb Max Torque, 0.8 A |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 0.8 A |
| Manufacturer Part Number | M1125002.00 |
